Description

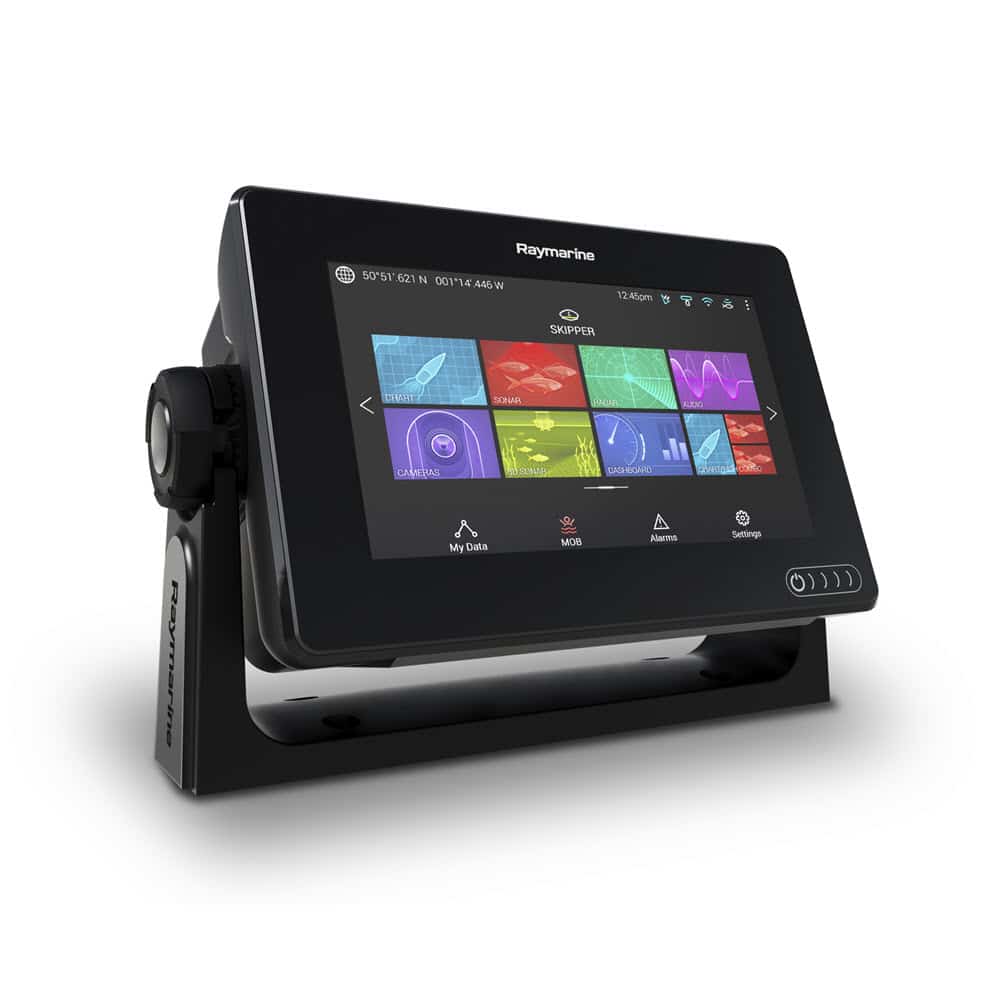

Axiom is expandable, so its capabilities can grow, as needed. It supports the full range ofย Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones (a future LightHouse 3 software update required for mobile app compatibility)
Axiom includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.

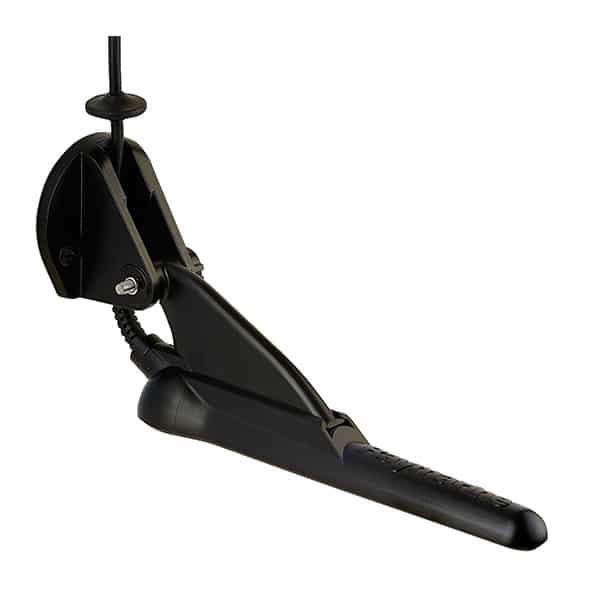

- Includes CPT-S Transom Mount Transducer
- Built In 600 Watt Sonar With DownVision
- Navionics+ North America Charts Included
| DISPLAY | |
| Display Size | 7.0″ Optically Bonded LCD |
| Display Resolution | 800 x 480 WVGA |
| Display Type | Multitouch |
| Brightness | 1,200 nits |
| Viewing Angle | Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right) |
| PHYSICAL | |
| Dimensions | 210 x 142 x 77mm (7.92″ x 5.24″ x 3.00″) |
| Weight | 1.52kg (3.35lbs) |
| Mounting | Top, Flush, Front, Bracket |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temperature | -25deg C to +55deg C (-13deg F to 131deg F) |
| Storage Temp | -30deg C to +70deg C (- 22deg F to 158deg F) |
| POWER | |
| Voltage | 12V DC (8 V to 16 VDC) |
| Power Consumption (Max @ 12V DC) | Chartplotter – 7.34 Watts | DV – 10.02 Watts | RV – 9.84 Watts Note:ย Power consumption figures for DV variants were taken using a CPT-100DVS transducer and RV variants using an RV-100 transducer. |
| SENSORS | |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory:ย RS150ย (E70310) |
| Sonar Type (Built-in) | DV model – Built-in DownVision™ + 600W | RV model – Built-in RealVision™ 3D + 600W |
| Sonar Connection | DV variant = 9 pin DownVision™ type connector RV variant = 25pin RealVision™ type connector (see transducer adaptor list for connecting 600W) See adaptor and Y-cables to connect Raymarine CPT type, new RealVision 3D and/or Airmar 600W External sonar – RayNet |
| Sonar Depth | CHIRP Sonar = 274m (900 feet) | DownVision™ = 183m (600 feet) SideVision™ = 91m (300 feet) | RealVision™ 3D = 91m (300 feet) |
| External Sonar | Yes –ย CP100, CP200, CP370, CP470, CP570ย via RayNet |
| Radar | Yes –ย Quantum, Digital, HD Color and Super HD Color Radars |
| AIS | Yes – NMEA2000 |
| Autopilot Control | Yes – Evolution Autopilot |
| Thermal Night Vision | Yes – IP camera input only |
| Video / Camera | Up to 10 IP Cameras |
| Weather | GRIB View – Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only) [Weather features available in future Lighthouse 3 software update] |
| Audio Integration | NMEA2000 / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] |
| Digital Switching | Yes – Empirbus |
| Remote Control | *RMK-10 (A80438) & *RCU-3 (E62351) [*Available in future Lighthouse 3 software update] |
| NETWORKING | |
| Ethernet | 1 x 10/100 Mbits/ Network (RayNet) |
| NMEA0183 | Requires suitable adaptor to NMEA2000 network |
| NMEA2000 | 1 x NMEA2000 port (DeviceNet microC) |
| SeaTalkNG | Requires A06045 DeviceNet female (F) adapter cable – 400mm |
| USB | 1 x USB microBย rear – 0.5A charging, external storage device or RCR-SD/USB Accessory (A80440)) |
| Wi-Fi | WiFi – 802.11 b / g / n |
| BlueTooth | Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] |
| NAVIGATION | |
| Cartography | Navionics+ US and Canada Charts Included |
| Tides & Currents | Navionics |
| Waypoint / Routes / Tracks | 10,000 wpts / 200 wpt groups / 150 rts – 250 wpt max / 16 tracks – 10,000 max trk pts |
| MEMORY | |
| Internal | 4GB Solid State |
| External | 1 x microSD slots (rear) – microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
| OTHER | |
| Languages | 14 |
| Conformances | NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 |
