Description

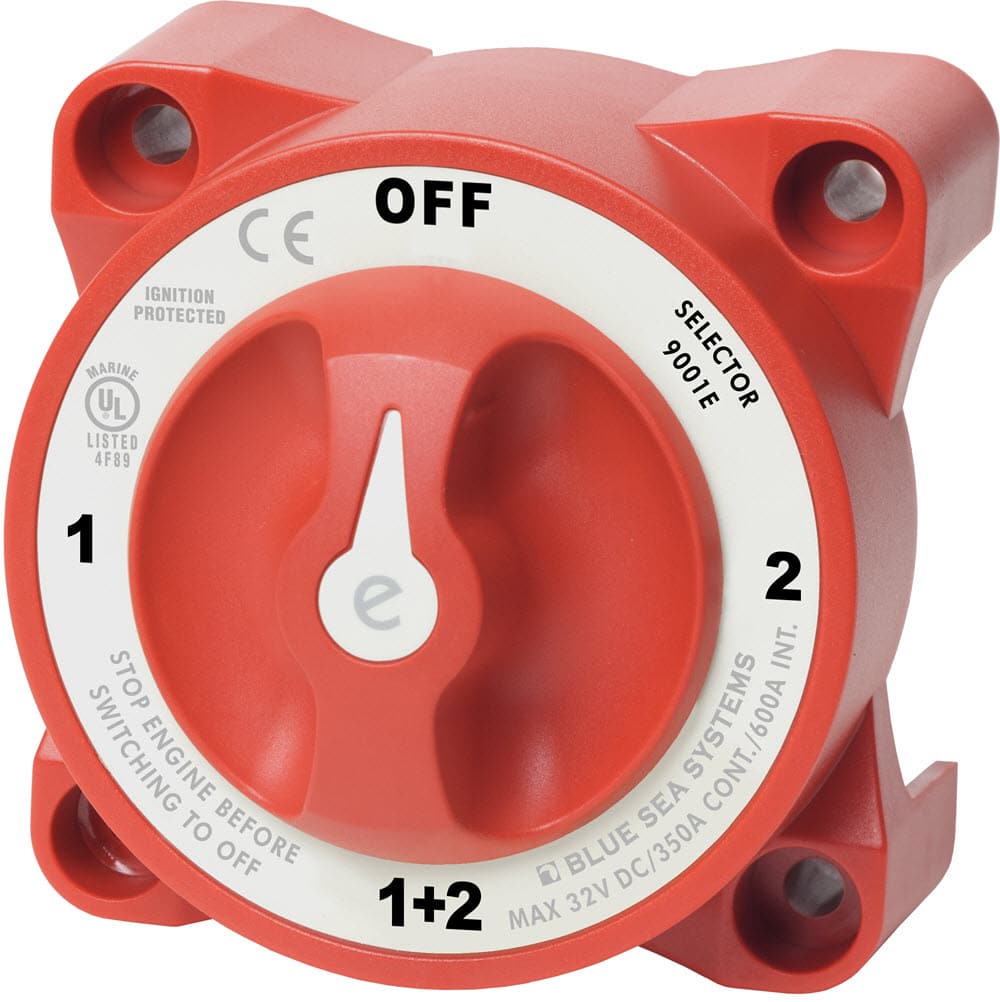

Blue Sea Systems’ switch (9001e) is our choice for best value in a standard-duty battery selector switch. It’s made in the U.S. with high grade materials, comes with a lifetime warranty, and is the least expensive switch in our test.” – Powerboats Reports, June 2005
Features
- Make-before-break contact design allows switching between battery banks without power interruption
- CE Marked
- Ignition protected – Safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
- 7/8″ (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
Specifications
- Inrush Rating: 0.25 sec (10 repeats)*: 1750 Amperes DC
- Cable Size to Meet Ratings: 4/0 (95 mm2)
- Weight Lb (Kg): 1.15 (0.52)
- Cranking Rating: 9.75 sec (10 repeats)*: 900 Amperes DC
- Maximum Voltage Rating: 48 Volts DC
- Agency Standards: UL Listed – UL 1107 Electric Power Switch / Meets UL 1500 and SAE J171 ignition protection requirements
- Intermittent Rating: 5 min (UL 1107): 600 Amperes DC
- Terminal Stud, Tin-Plated Copper: 3/8″ (accepts M10 terminal ring)
- Continuous Rating: (UL 1107): 350 Amperes DC
- Case Material: Reinforced Polycarbonate
- Terminal Stud Torque: 140 in-lbs.(15.82 N.m)
- Cable Clearance For 4/0 AWG Cables: 1.10″ (27.9mm)
- Brand: Blue Sea Systems
