Description
Pushing the boundaries of what is possible on the water even further, the new revamped Fusion Signature Series 3 marine speakers deliver unparalleled performance even when exposed to the harshest marine conditions.
Incorporating the finest materials and latest acoustic technologies, we have combined โCURVโ cone composite technology with a silk dome tweeter and fully sealed crossover components to create a speaker system with a stunning signature sound for premium on-water listening.
The sports-style Signature Series 3 speakers feature industry-first CRGBW LED lighting to illuminate your vessel with an unprecedented spectrum of colors, to help set the mood or start the party with premium, more ambient lighting.
These 7.7″ Signature Series 3 speakers can handle up to a thunderous 280 Watt peak power, so you can truly experience “The Power Of Music”.
Features:
Premium CRGBW LED Lighting: Industry-first marine speakers with CRGBW (Cool White, Red, Green, Blue, Warm White) illuminates an unprecedented spectrum of colors from premium pastels to vibrant hues to match your music for an unparalleled, more ambient on-water entertainment experience. Control the color, brightness, light mode and speed with the optional MS-CRGBWRC wireless remote control (sold separately).
CURV Cone Technology: Incorporates CURV woven fiber composite which is heat pressed to form a lighter and stronger cone that delivers improved sound definition and higher output, while also providing increased protection from the marine conditions.
Fully Sealed Crossover Components: Provides full protection from the harsh marine environment, whilst delivering an improved frequency response at the crossover point for a detailed audio spectrum and new level of acoustic performance.

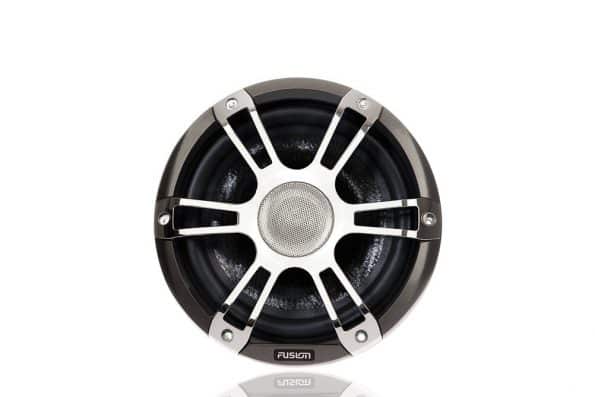

Sports Styled Grille: A structurally rigid True-Marine™ design provides the ultimate cone protection, with great looks to complement any vessel. Aesthetically designed for both in your cabin or on your deck.
Silk Dome Tweeter: Creates a smooth upper frequency response with increased efficiency, and delivers crystal clear music reproduction.
Large Diameter Voice Coil: Delivering an increase in real power and efficiency, the voice coil provides a signature sound exclusive to the 7.7โ speakers.
Designed To Comply With ISO12216: Tested to international standards for pressure and watertightness, it recognizes the Signature Series 3 speakers are designed and built to the highest industry standards for quality and robustness.
Configurationย | Coaxialย |
Speaker Sizeย | 7.7″ย |
Peak Powerย | 280 Wattsย |
RMS Power Ratingย | 100 Wattsย |
Efficiency (1W/1M)ย | 91 dBย |
Frequency Responseย | 60 Hz – 22 kHzย |
Nominal Impedanceย | 4 Ohmsย |
Recommended Amplifier Power (RMS)ย | 25 – 120 W/Chย |
Tweeter Typeย | Silk Domeย |
Cone Materialย | CURVย |
Voice Coil Diameterย | 1.4″ย |
LED Color Optionsย | CRGBW (Cool White, Red, Green, Blue, Warm White)ย |
Water and Dust Resistance (IP Rating)ย | IP65ย |
Mounting Diameter Clearanceย | 156mm [6-1/8″]ย |
Mounting Depth Clearanceย | 86mm [3-3/8″]ย |
Speaker Dimensions: Length x Height x Depth (Basket)ย | ร 196mm x 82.5mm [ร 7-3/4″ x 3-1/4″]ย |
Warrantyย | 3 yearsย |
