Description

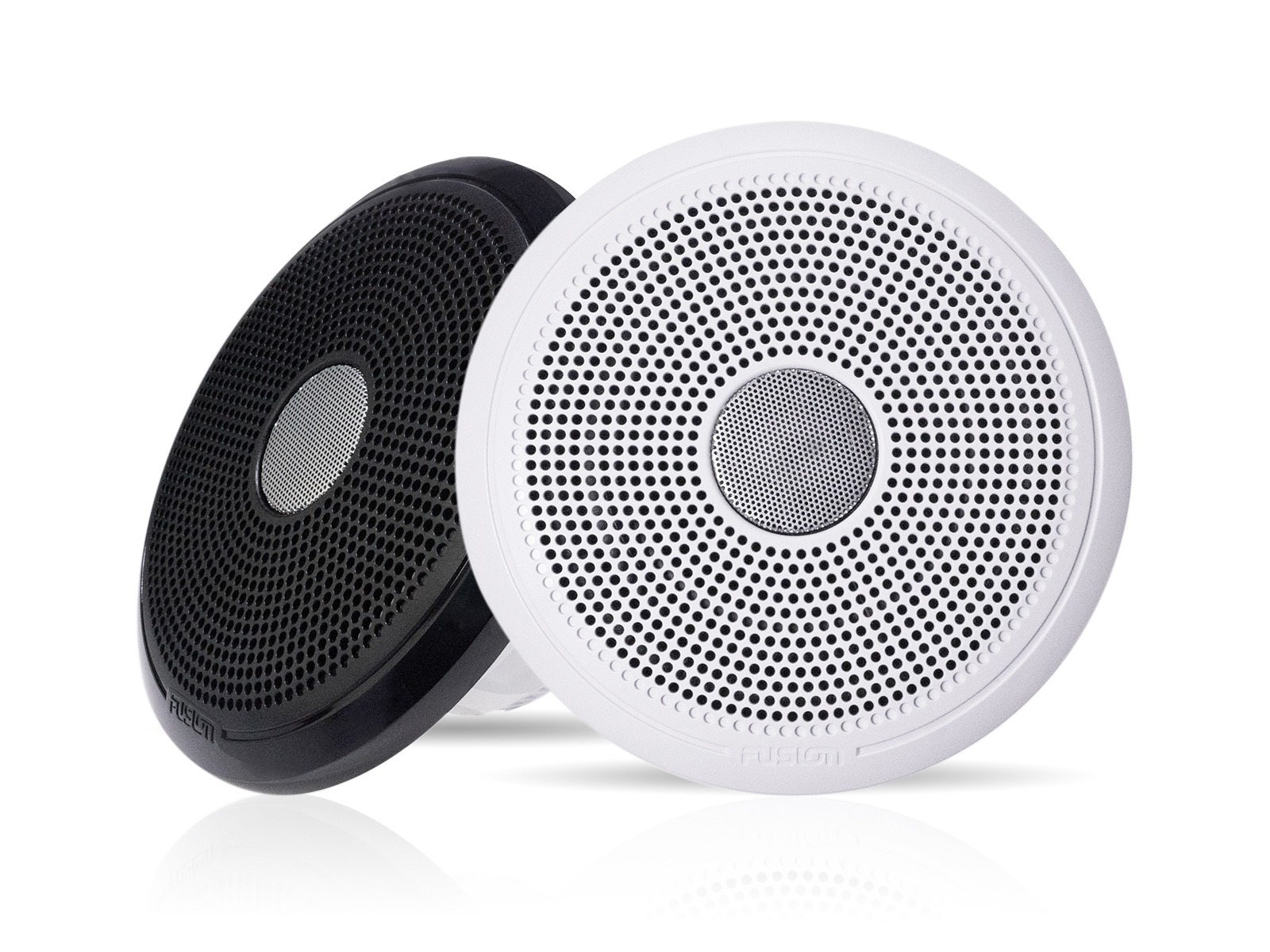

The XS Series classic style speakers are available in 4”, 6.5” and 7.7” sizes with interchangeable classic white/classic black grilles for a timeless, elegantly styled finish to blend with the aesthetics of your boat.
General |
|
| Physical dimensions (Diameter x Depth) | 7.7″ Classic: 7.72″ x 3.70″ (196 x 94 mm) 7.7″ Sports: 7.72″ x 3.82″ (196 x 97 mm) 6.5″ Classic: 6.97″ x 3.19″ (177 x 81 mm) 6.5″ Sports: 6.97″ x 3.27″ (177 x 83 mm) 4″ Classic: 5.31″ x 2.68″ (135 x 68 mm) |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Speaker size | XS-F77CWB/XS-F77SPGW/XS-FL77SPGW: 7.7″ XS-F65CWB/XS-F65SPGW/XS-FL65SPGW: 6.5″ XS-F40CWB: 4″ |
| Peak power (Watts) | 7.7″ Speaker: 240 W 6.5″ Speaker: 200 W 4″ Speaker: 120 W |
| RMS power (Watts) | 7.7″ Speaker: 60 W 6.5″ Speaker: 50 W 4″ Speaker: 30 W |
| Sensitivity (1 W / 1 m) | 7.7″ Speaker: 92 dB 6.5″ Speaker: 91 dB 4″ Speaker: 87 dB |
| Frequency response | 7.7″ Speaker: 70 Hz-18 kHz 6.5″ Speaker: 80 Hz-18 kHz 4″ Speaker: 100 Hz-18 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 7.7″ Speaker: 25-200 W/Ch 6.5″ Speaker: 20-150 W/Ch 4″ Speaker: 15-80 W/Ch |
| LED Supply Voltage | 10.8-16 VDC (XS-FL77SPGW and XS-FL65SPGW only) |
| LED load current @ 14.4 VDC | 150 mA (XS-FL77SPGW and XS-FL65SPGW only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 7.7″: 1.18″ 6.5″: 1.18″ 4″: 1″ |
| Cone material | 7.7″ / 6.5″: Polypropylene cone with cloth surround 4″: Polypropylene cone with rubber surround |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 7.7″: 157.5″ (400 cm) 6.5″: 122″ (310 cm) 4″: 100.5″ (255 cm) |
| Warranty | 3 years |
Mounting Dimensions |
|
| Mounting diameter clearance | 7.7″: 6.38″ (162 mm) 6.5″: 5.31″ (135 mm) 4″: 3.90″ (99 mm) |
| Mounting depth clearance | 7.7″: 3.03″ (77 mm) 6.5″: 2.64″ (67 mm) 4″: 2.13″ (54 mm) |
Optimum Enclosure Recommendations |
|
| Sealed enclosure volume1 | 7.7″: 0.35 cubic ft (10 L) 6.5″: 0.28 cubic ft (8 L) 4″: 0.14 cubic ft (4 L) |
1Fully filled with absorption material
