Description

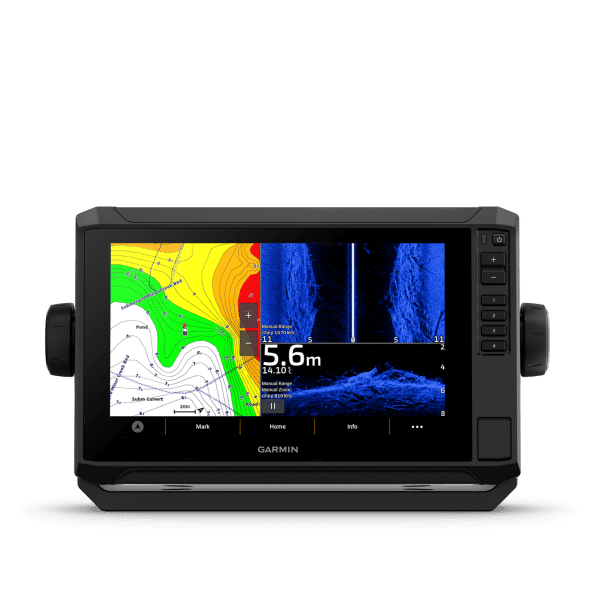

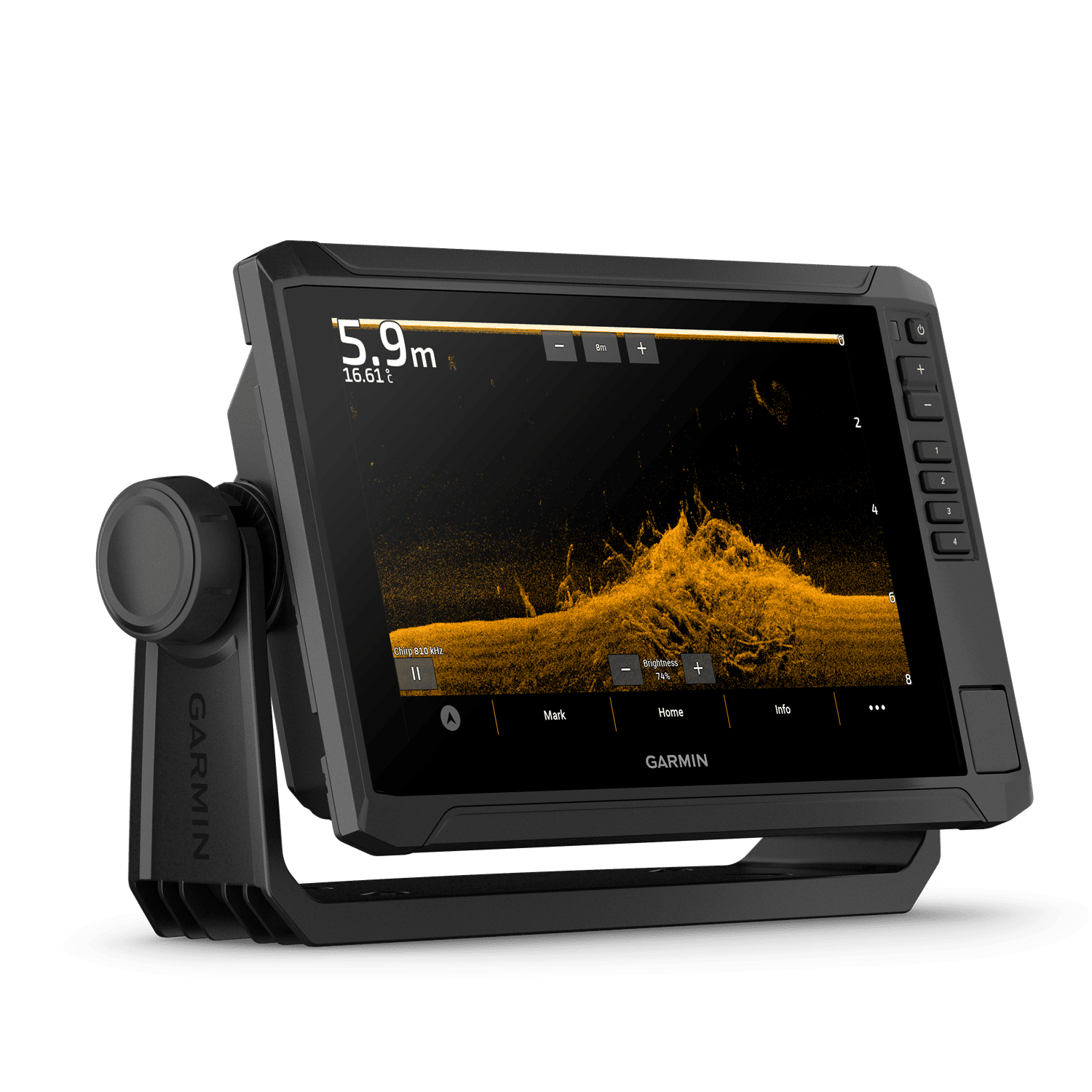

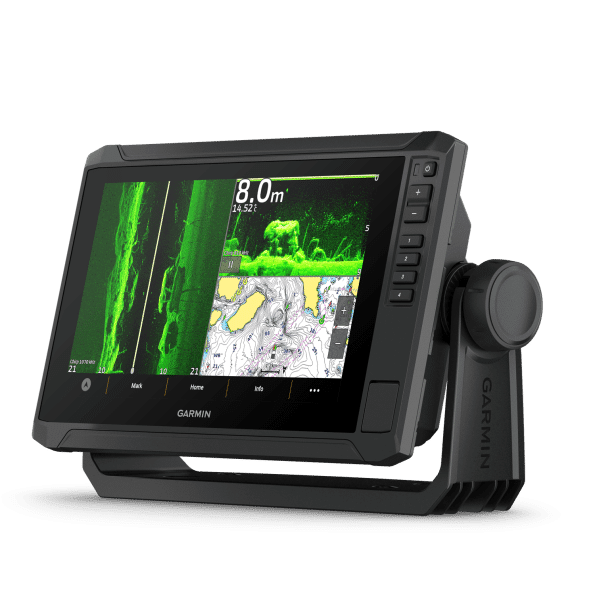

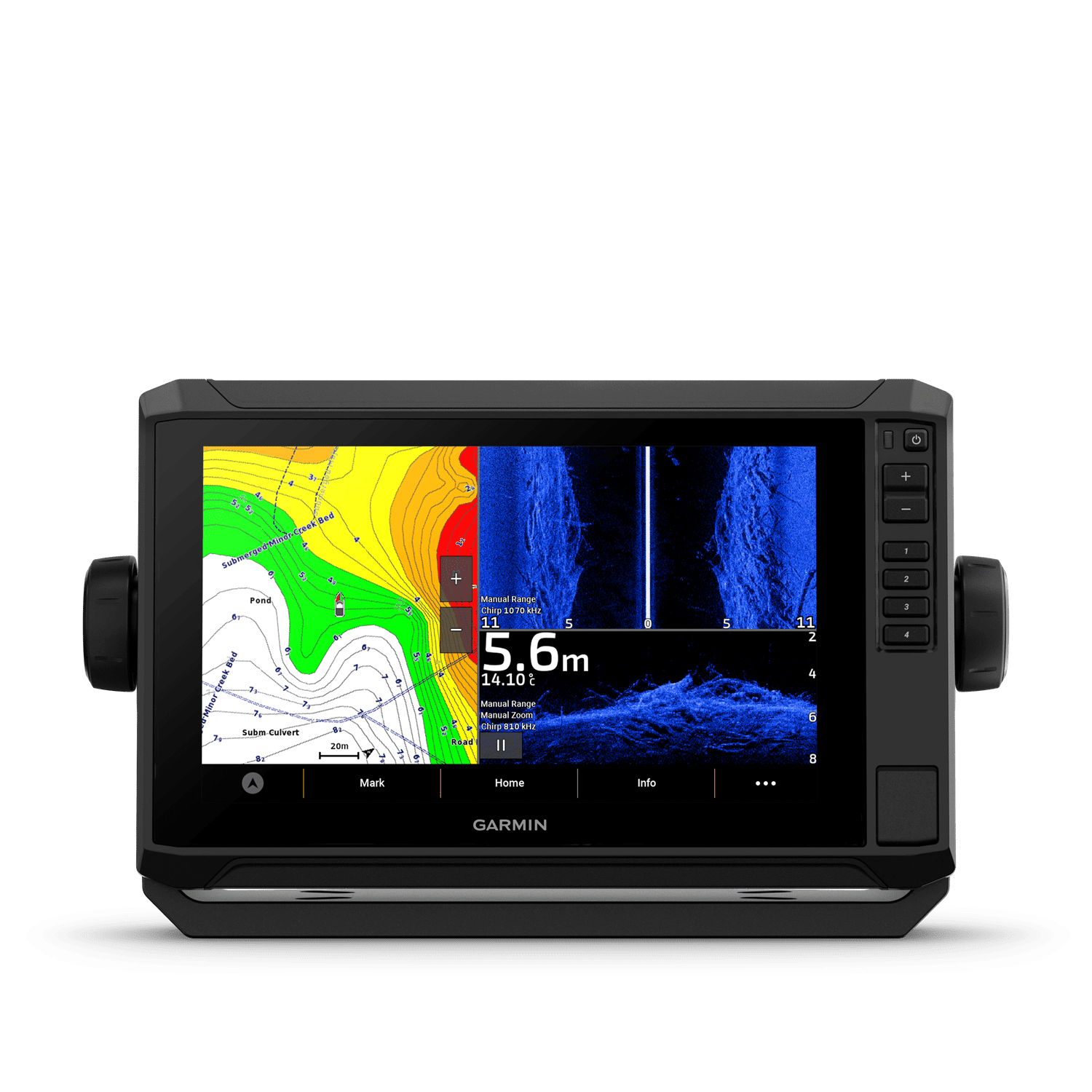

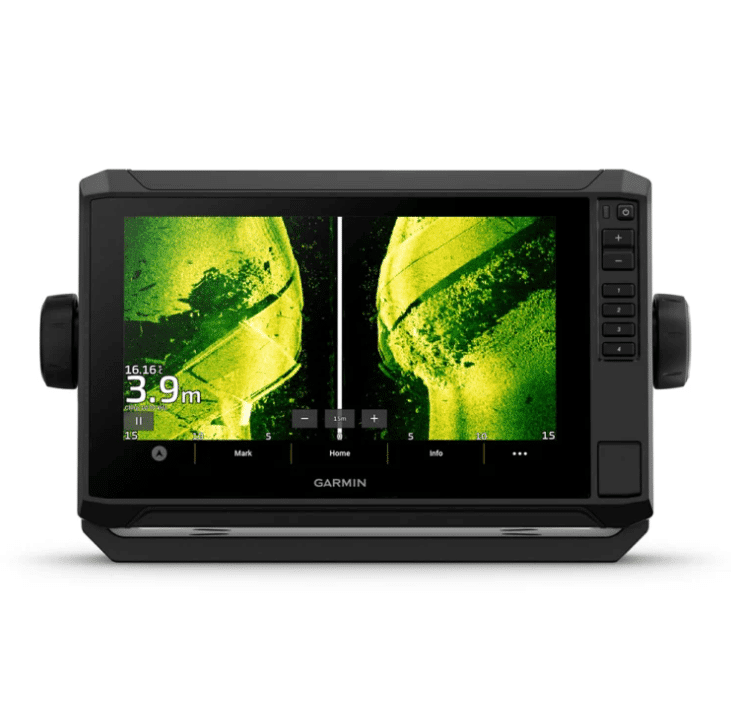

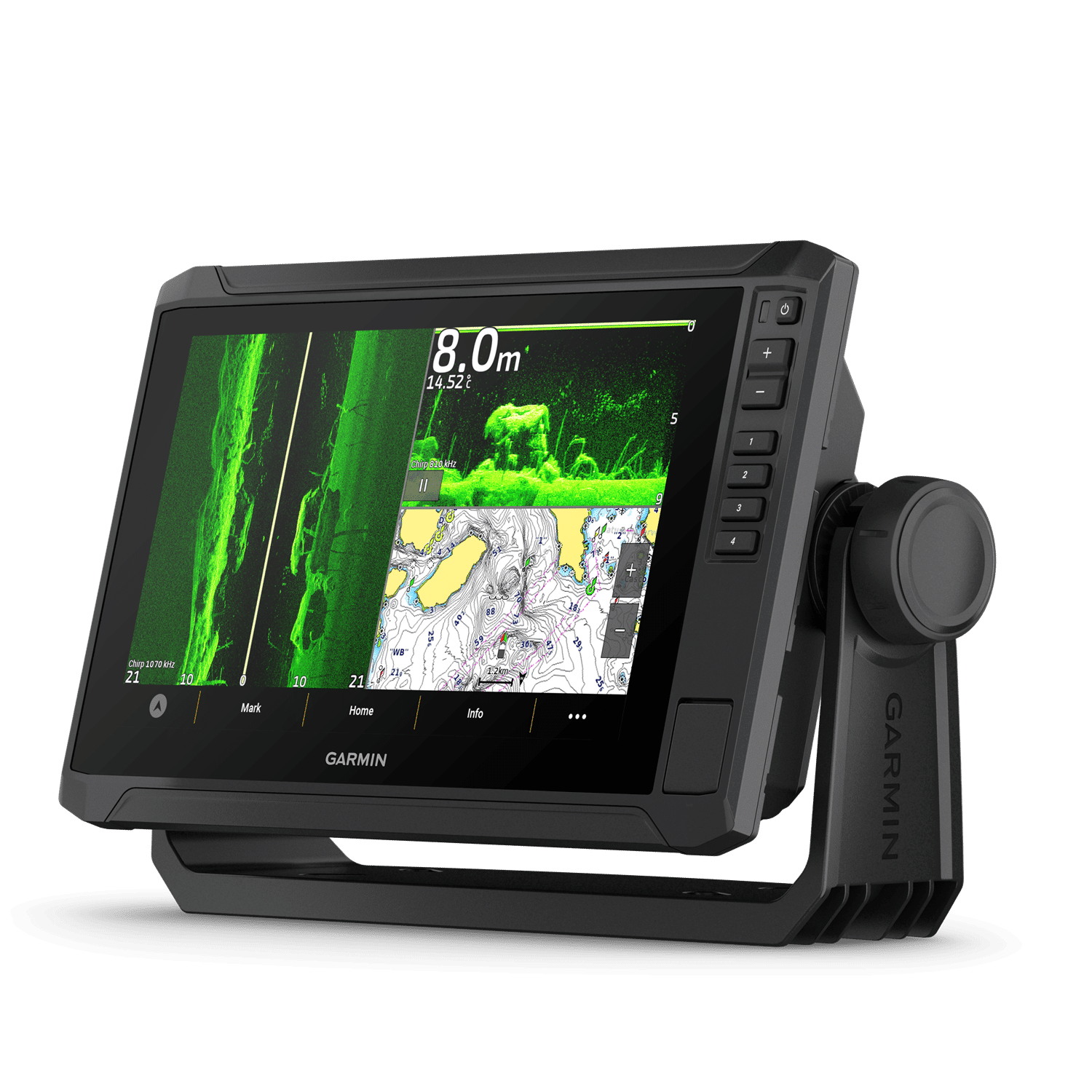

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.
| General | ||
| DIMENSION | 10.4″ x 6.5″ x 3.2″ (26.4 x 16.6 x 8.0 cm) | |
| TOUCHSCREEN | YES | |
| INPUT | TOUCHSCREEN, KEYED ASSIST | |
| DISPLAY SIZE |
|
|
|
1024 X 600 PIXELS | |
| DISPLAY TYPE | WSVGA, TN | |
| WATERPROOF | IPX7 | |
| MOUNTING OPTIONS | BAIL OR FLUSH | |
| MAPS & MEMORY | ||
|
MicroSD™ Card; 32 GB Maximum Size | |
| WAYPOINTS | 50,000 | |
| TRACK POINTS | 50,000 | |
| TRACKS | 50 SAVED TRACKS | |
| NAVIGATION ROUTES | 100 | |
| SENSORS | ||
| HAS BUILT-IN RECEIVER | YES | |
| RECEIVER | 10 Hz | |
| NMEA 2000 COMPATIBLE | YES | |
| GPS | YES | |
| GLONASS | YES | |
| GALILEO | YES | |
| BEIDOU | YES | |
| SUPPORTS WAAS | YES | |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION | YES | |
| BUILT-IN-MAPS | ||
| GARMIN NAVIONICS+ | YES | |
| OPTIONAL MAPS SUPPORT | ||
| GARMIN NAVIONICS+ | YES | |
| GARMIN NAVIONICS VISION+ | YES | |
| TOPO | YES | |
| STANDARD MAPPING | YES | |
| GARMIN QUICKDRAW CONTOURS | YES | |
| CHARTPLOTTER FEATURES | ||
| AIS | YES-WITH COMPATIBLE DEVICE | |
| DSC | YES-WITH COMPATIBLE DEVICE | |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION | YES | |
| ACTIVECAPTAIN COMPATIBLE | YES | |
| SAILING FEATURES | YES | |
| SONAR FEATURES AND SPECIFICATIONS | ||
| DISPLAYS SONAR | YES | |
| POWER OUTPUT | 500 W | |
|
BUILT-IN single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP | |
| CLEARVÜ | BUILT-IN 260/455/800/1000/1200 kHz | |
| SIDEVÜ | BUILT-IN 260/455/800/1000/1200 kHz | |
| PANOPTIX SONAR | COMPATIBLE | |
| LIVESCOPE | COMPATIBLE | |
| CONNECTIONS | ||
| NMEA 2000 PORTS | YES | |
| GARMIN MARINE NETWORK PORTS | 1 | |
| 12-PIN TRANSDUCER PORTS | 1 | |
| BLUETOOTH PAIRING | 1 | |
| ANT+ (CONNECTIVITY) | YES | |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | YES | |
| ELECTRICAL FEATURES | ||
| POWER INPUT | 9 TO 18 V | |
| TYPICAL CURRENT DRAW AT 12 VDC | 1.72 A | |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.5 A | |
| MAXIMUM POWER USAGE AT 10 VDC | 20.7 W |
