Description

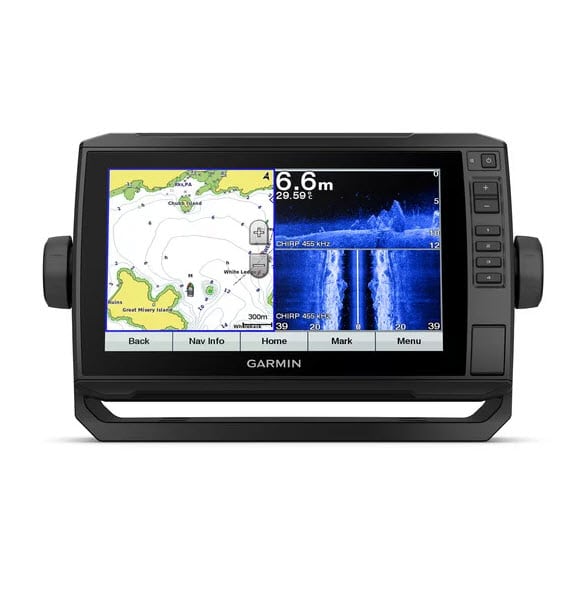

Bright, sunlight-readable 9” keyed-assist touchscreen combo
- Includes GT52 transducer for Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars; compatible with Panoptix all-seeing sonar (sold separately)
- Preloaded Canada LakeVü g3 maps with integrated Navionics data cover more than 13,500 lakes with up to 1’ contours
- Built-in Garmin Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
- Use built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, smart notifications¹, Garmin Quickdraw Community data and more
- Share sonar, waypoints and routes with other ECHOMAP Plus 7” and 9” units as well as ECHOMAP Ultra 10” and 12” units
Bright, sunlight-readable 9” combo offers the convenience of a keyed-assist touchscreen. It comes with one transducer that encompasses Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars, and it’s also compatible with Panoptix all-seeing sonar. Preloaded with Canada LakeVü HD maps cover more than 13,500 lakes, of which more than 4,800 are HD lakes with 1’ contours. Plus, Quickdraw Contours mapping software to instantly create personalized fishing maps on-screen with 1’ contours as you fish. It also has built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to purchase and download new charts. ActiveCaptain also gives you access to smart notifications1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more. Features quick-release bail mount to make it easy to remove and take with you. Transom and trolling motor mounts included.
The Garmin CHIRP Difference
The built-in sonar capabilities of ECHOMAP Plus 95sv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota and MotorGuide trolling motors with integrated transducers.
Clear Scanning Sonar Images
Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image of what’s below your boat. Garmin CHIRP SideVü shows you in incredible detail, what lies off to the sides of your boat. You clearly see structure, submerged objects and fish. Garmin CHIRP traditional sonar and ClearVü and SideVü scanning sonar are combined into 1 transducer.
Preloaded Canada LakeVü HD Maps
These highly detailed freshwater maps include 13,500 Canada lakes, rivers and reservoirs, including coverage for the Great Lakes and Trent Severn Waterway. That number also includes more than 4,800 HD lakes with 1’ contours in Alberta, British Columbia, Nova Scotia, Ontario, Quebec, Saskatchewan and Yukon provinces. Canada LakeVü HD gives you excellent detail of underwater features, plus Shallow Water Shading allows you to designate a minimum depth. It also shows interstates, general roads and bridges, designated fishing areas, boat ramps, marinas and campgrounds.
Quickdraw Contours to Create Your Own Maps
Instantly create personalized fishing maps on-screen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.
Get Connected with ActiveCaptain App
Our free all-in-one ActiveCaptain app mobile app allows you to manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your chartplotter, charts, maps and the community. Use the combo’s built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to update or purchase and download new charts. ActiveCaptain also gives you access to smart notifications, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more.
SailAssist Features
SailAssist features include laylines, enhanced wind rose and heading and course-over-ground lines. See true and apparent wind angle and speed as well as set and drift and a glance. To help you gain a wind-maximizing competitive edge, a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer.
Upgrade to Our Best Maps on the Water
Step up to Canada LakeVü HD Ultra with Max Def Lakes, BlueChart g2 HD or BlueChart g2 Vision® HD, which adds Auto Guidance¹ and other great features. A single microSD card slot provides expandable memory for accessory map purchases.
See Fish Swimming in Real Time
Add optional Panoptix all-seeing sonar and see all around your boat and below it — in real time, even while your boat is stationary. See your lure as it sinks, relative to structure in the water. Watch the movement of fish — and their reactions to your bait — up to 100’ away or below the boat.
NMEA 2000 Network Support
Provides NMEA 2000 support for engine data, sensors, FUSION-LINK audio system, autopilots and more.
Take Your ECHOMAP Plus with You
When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.
The Combo with Connections
- Bright, sunlight-readable 9” keyed-assist touchscreen combo
- Includes GT52 transducer for Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars; compatible with Panoptix all-seeing sonar (sold separately)
- Preloaded Canada LakeVü g3 maps with integrated Navionics data cover more than 13,500 lakes with up to 1’ contours
- Built-in Garmin Quickdraw™ Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
- Use built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, smart notifications¹, Garmin Quickdraw Community data and more
- Share sonar, waypoints and routes with other ECHOMAP Plus 7” and 9” units as well as ECHOMAP Ultra 10” and 12” units
Bright, sunlight-readable 9” combo offers the convenience of a keyed-assist touchscreen. It comes with one transducer that encompasses Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars, and it’s also compatible with Panoptix all-seeing sonar. Preloaded with Canada LakeVü HD maps cover more than 13,500 lakes, of which more than 4,800 are HD lakes with 1’ contours. Plus, Quickdraw Contours mapping software to instantly create personalized fishing maps on-screen with 1’ contours as you fish. It also has built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to purchase and download new charts. ActiveCaptain also gives you access to smart notifications, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more. Features quick-release bail mount to make it easy to remove and take with you. Transom and trolling motor mounts included.
The Garmin CHIRP Difference
The built-in sonar capabilities of ECHOMAP Plus 95sv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota and MotorGuide trolling motors with integrated transducers.
Clear Scanning Sonar Images
Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image of what’s below your boat. Garmin CHIRP SideVü shows you in incredible detail, what lies off to the sides of your boat. You clearly see structure, submerged objects and fish. Garmin CHIRP traditional sonar and ClearVü and SideVü scanning sonar are combined into 1 transducer.
Preloaded Canada LakeVü HD Maps
These highly detailed freshwater maps include 13,500 Canada lakes, rivers and reservoirs, including coverage for the Great Lakes and Trent Severn Waterway. That number also includes more than 4,800 HD lakes with 1’ contours in Alberta, British Columbia, Nova Scotia, Ontario, Quebec, Saskatchewan and Yukon provinces. Canada LakeVü HD gives you excellent detail of underwater features, plus Shallow Water Shading allows you to designate a minimum depth. It also shows interstates, general roads and bridges, designated fishing areas, boat ramps, marinas and campgrounds.
Quickdraw Contours to Create Your Own Maps
Instantly create personalized fishing maps on-screen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.
Get Connected with ActiveCaptain App
Our free all-in-one ActiveCaptain app mobile app allows you to manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your chartplotter, charts, maps and the community. Use the combo’s built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to update or purchase and download new charts. ActiveCaptain also gives you access to smart notifications, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more.
SailAssist Features
SailAssist features include laylines, enhanced wind rose and heading and course-over-ground lines. See true and apparent wind angle and speed as well as set and drift and a glance. To help you gain a wind-maximizing competitive edge, a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer.
Upgrade to Our Best Maps on the Water
Step up to Canada LakeVü HD Ultra with Max Def Lakes, BlueChart g2 HD or BlueChart® g2 Vision® HD, which adds Auto Guidance¹ and other great features. A single microSD card slot provides expandable memory for accessory map purchases.
See Fish Swimming in Real Time
Add optional Panoptix all-seeing sonar and see all around your boat and below it — in real time, even while your boat is stationary. See your lure as it sinks, relative to structure in the water. Watch the movement of fish — and their reactions to your bait — up to 100’ away or below the boat.
NMEA 2000® Network Support
Provides NMEA 2000 support for engine data, sensors, FUSION-LINK™ audio system, autopilots and more.
Take Your ECHOMAP Plus with You
When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.
| General | |
| PHYSICAL DIMENSIONS | 11.4″ x 6.5″ x 2.4″ (28.2 x 16.4 x 6.0 cm) |
| DISPLAY SIZE | 7.8″ x 4.8″; 9″ diagonal (19.9 x 11.3 cm; 22.9 cm diagonal) |
| DISPLAY RESOLUTION | 400 x 800 pixels |
| DISPLAY TYPE | WVGA display |
| WEIGHT | 2.3 lbs (1.0 kg) |
| WATER RATING | IPX7 |
| POWER CONSUMPTION | 18W |
| ANTENNA | Internal or external over NMEA 2000 |
| MOUNTING OPTIONS | Bail or flush |
| RECEIVER | 5 Hz |
| GARMIN MARINE NETWORK™ PORTS | 1 Panoptix™ port |
| Maps & Memory | |
| PRELOADED MAPS | LakeVü g3 (inland maps) |
| ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum card size |
| WAYPOINTS | 5,000 |
| ROUTES | 100 |
| TRACK LOG | 50,000 points; 50 saved tracks |
| Outdoor Recreation Features | |
| TIDE TABLES | Yes |
| Chartplotter Features | |
| GARMIN SONAR COMPATIBLE | Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| Sonar Features & Specifications | |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes |
| TRANSMIT POWER | 500 W (RMS) / 4,000 W (peak to peak) |
| CHIRP SONAR TECHNOLOGY | Yes (Built-in) |
| CLEARVÜ | Yes with CHIRP (built-in) |
| SIDEVÜ | Yes with CHIRP |
| MAXIMUM DEPTH |
2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
| WATER TEMPERATURE LOG AND GRAPH | Yes |
| SONAR RECORDING | Yes |
| SONAR HISTORY REWIND | Yes |
| Connections | |
| NMEA 2000® COMPATIBLE | Yes |
| TRANSDUCER PIN NUMBERS | 12 |
| NMEA 0183 INPUT PORTS | 1 |
| NMEA 0183 OUTPUT PORTS | 1 |
| VIDEO INPUT PORTS | None |
| VIDEO OUTPUT PORTS | None |
| WIRELESS CONNECTIVITY | Yes |
