Description

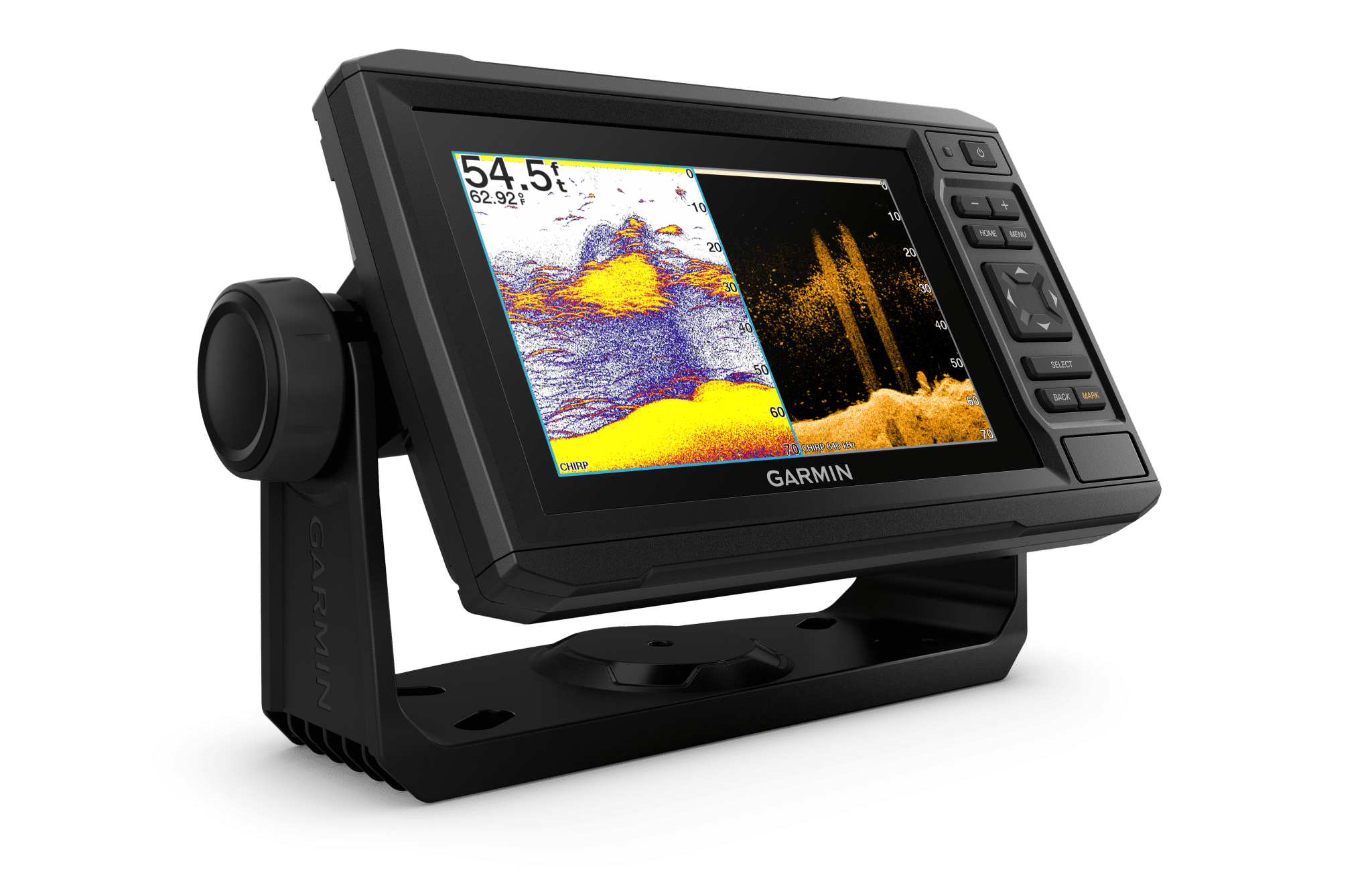

GARMIN ECHOMAP UHD 64cv:
INCLUDED TRANSDUCER
This chartplotter comes with a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.
PRELOADED MAPPING
Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics data that covers more than 17,000 lakes with up to 1’ contours.
QUICKDRAW CONTOURS
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.
NMEA 2000 AND NMEA 0183 NETWORKS
Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.
ACTIVECAPTAIN APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Quickdraw Community data and more.
Specifications:
| Physical dimensions | 8.6″ x 5.1″ x 2.6″ (21.8 x 13.0 x 6.2cm) |
| Water rating | IPX7 |

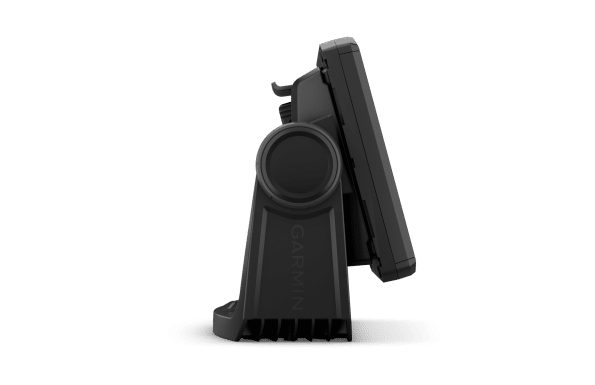

| Mounting options | Bail or flush |
| Antenna | Internal or external over NMEA 2000 |
| Receiver | 5 Hz |
| Display size | 5.4″ x 3.1″; 6.2″ diagonal (13.7 x 7.7 cm; 15.2 cm diagonal) |
| Display resolution | 480 x 800 pixels |
| Weight | 1.6 lbs (0.7 kg) |
| Display type | WVGA display |
| Accepts data cards | 1 microSD card; 32 GB maximum size |
| Track log | 50,000 points; 50 saved tracks |
| Preloaded maps | BlueChart g3 (coastal maps) |
| Routes | 100 |
| Maximum depth |
2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| Wireless remote compatible | No |
| J1939 Compatible | No |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Transmit power | 500 W (RMS) / 4,000 W (peak to peak) |
| SiriusXM Weather & Radio compatible | No |
| Polarized Support | No |
| Water temperature log and graph | Yes |
| Supports FUSION-Link compatible radios | No |
| Power consumption | 12W |
| NMEA 0183 output ports | 1 |
| NMEA 2000 compatible | Yes |
| Bottom lock (shows return from the bottom up) | Yes |
| CHIRP sonar technology | Yes (Built-in) |
| NMEA 0183 compatible | Yes |
| Transducer pin numbers | 4 |
| Supports AIS (tracks target ships position) | Yes |
| GSD Black Box sonar support | No |
| GCV Black Box sonar support | No |
| Sonar history rewind | Yes |
| Video input ports | None |
| SideVü | No |
| ActiveCaptain compatible | Yes |
| GRID (Garmin Remote Input Device) compatible | No |
| Garmin Radar compatible | No |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Garmin Marine Network ports | None |
| Garmin Sonar compatible | Yes |
| NMEA 0183 input ports | 1 |
| Wireless connectivity | Yes |
| Wireless mouse compatible | No |
| Sonar recording | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Waypoints | 5,000 |
| Garmin SmartMode compatible (customizable monitor presets) | No |
| Video output ports | None |
| Garmin Meteor Audio System compatible | No |
| ClearVü | Yes with CHIRP (built-in) |
| Sailing Features | Yes |
| Tide tables | Yes |
