Description

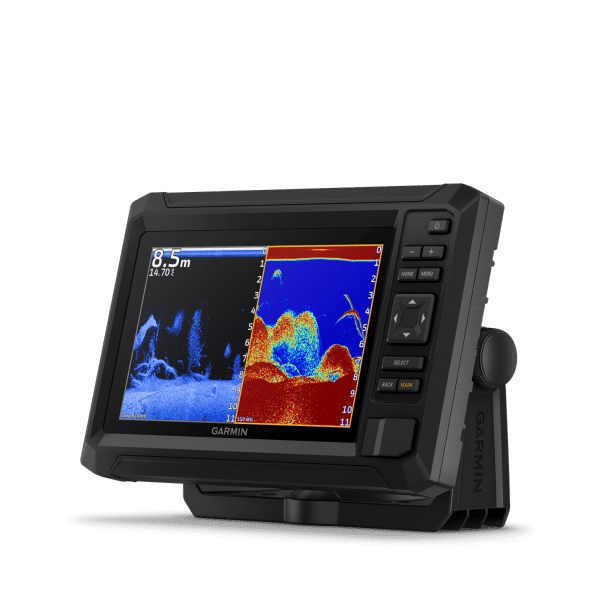

Garmin ECHOMAP UHD2 75cv has a bright 7” touchscreen display with keyed-assist is user-friendly and easy to read.
In The Box
- ECHOMAP UHD2 75cv
- GT20-TM transducer
- Power cable
- Tilt Mount
- Hardware
- Documentation
|
Physical & Performance
|
|
| Display Size | 6.1″ x 3.4″ (15.5 x 8.7 cm) |
| Power Input | 9 to 18 Vdc |
| Display resolution | 800 x 480 pixels |
| GPS | Yes |
| Dimension | 9.1″ x 5.6″ x 2.6″ (23.2 x 14.3 x 6.7 cm) |
| Receiver | 5 Hz |
| Waterproof | IPX7 |
| Weight | 1.5 lbs (0.7 kg) |
| Mounting Options | Bail or flush |
| Display Type | WVGA, TN |
|
Maps & Navigation
|
|
| Garmin Navionics+ (Coastal) | yes (see Additional) |
| Garmin Navionics Vision+ | Yes |
| Accepts Data Cards | 1 microSD card; 32 GB maximum size |
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
| Navigation Routes | 100 |
| Garmin Navionics+ | Yes |
|
Features
|
|
| Waypoints | 5,000 |
| Sailing Features | No |
| NMEA 0183 Compatible | No |
| Has built-in receiver | Yes |
| USB ports | No |
| TOPO 100K | Yes |
| SideVü | No |
| DSC | No |
| Touchscreen | No |
| Additional |
|
| LakeVü g3 Ultra | Yes |
| NMEA 2000 Compatible | No |
| ActiveCaptain compatible | yes |
| Typical current draw at 12 Vdc | 1.0 A |
| Tide tables | yes (see Additional) |
| GLONASS | No |
| Track points | 50,000 |
| Panoptix sonar | No |
| LakeVü g3 | Yes |
| Supports WAAS | Yes |
| GSD Black Box Sonar Support | No |
| Maximum current draw at 12 Vdc | 1.5 A |
| Smart Mode Compatible | No |
| Built-in Auto Guidance | No |
| Maximum power usage at 10 Vdc | 18W |
| BlueChart g3 | Yes |
| Standard Mapping | Yes |
| LakeVu (inland) | No |
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
| Displays sonar | Yes |
| ANT+ (Connectivity) | No |
| GCV Black Box Sonar Support | No |
| BNC external GPS antenna port | No |
| Spoken audio alerts | No |
| BlueChart g3 Vision | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
| Input | Keyed |
| BeiDou | No |
| Garmin Quickdraw Contours | Yes |
| BLUETOOTH pairing | No |
| AIS | No |
| Supports multi-band, multi-constellation GPS | No |
| Raster chart support | No |
| 4-pin transducer ports | 1 |
| OneHelm support | No |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| Tracks | 50 saved tracks |
| Wireless Remote Compatible | No |
| Supports Fusion-Link™ compatible radios | No |
| Galileo | Yes |
| LiveScope | No |
| Power output | 500 W |
| BlueChart (coastal) | No |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| GRID (Garmin Remote Input Device) compatible | No |
