Description

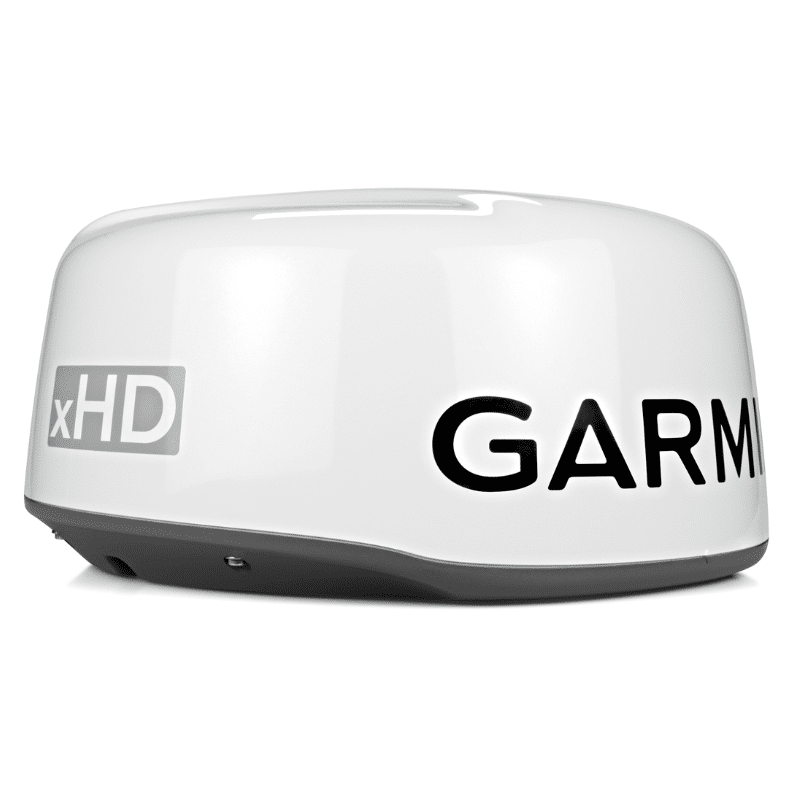

Garmin GMR 18 xHD Radarย delivers 4-kW transmit power and clear echo definition at all ranges. It has a maximum range of 48 nautical miles and 48- or 24-RPM rotation speeds for fast screen refreshes
General |
|
| DIMENSION | 20″ diameter, 9.75″ high (50.8 cm diameter, 24.8 cm high) |
|---|---|
| WEIGHT | 17 lbs (7.7 kg) |
| WATER RATING | IPX7 |
| ANTENNA LENGTH | 17″ (43.18 cm) |
| ROTATION SPEED (RPM) | 24 and 48 rpm |
| BEAM WIDTH | 5.2ยฐ horizontal, 25ยฐ vertical |
| MAXIMUM RANGE | 48 nm |
| MINIMUM RANGE | 20 meters |
| RADAR TYPE | Radome |
Electrical Features |
|
| POWER INPUT | 11-35 V DC |
|---|---|
| TRANSMIT POWER | 4 kW |
Radar Features |
|
| DUAL RANGE | Y |
|---|---|
| OVERLAY | Y |
| DUAL RADAR SUPPORT | Y |
| AUTO GAIN | Y |
| MARPA TARGET TRACKING | Y (requires heading sensor, sold separately) |
