Description
| General | |
| DIMENSIONS | 9.2″ x 6.4″ x 3″ (23.3 x 16.2 x 7.6 cm) |

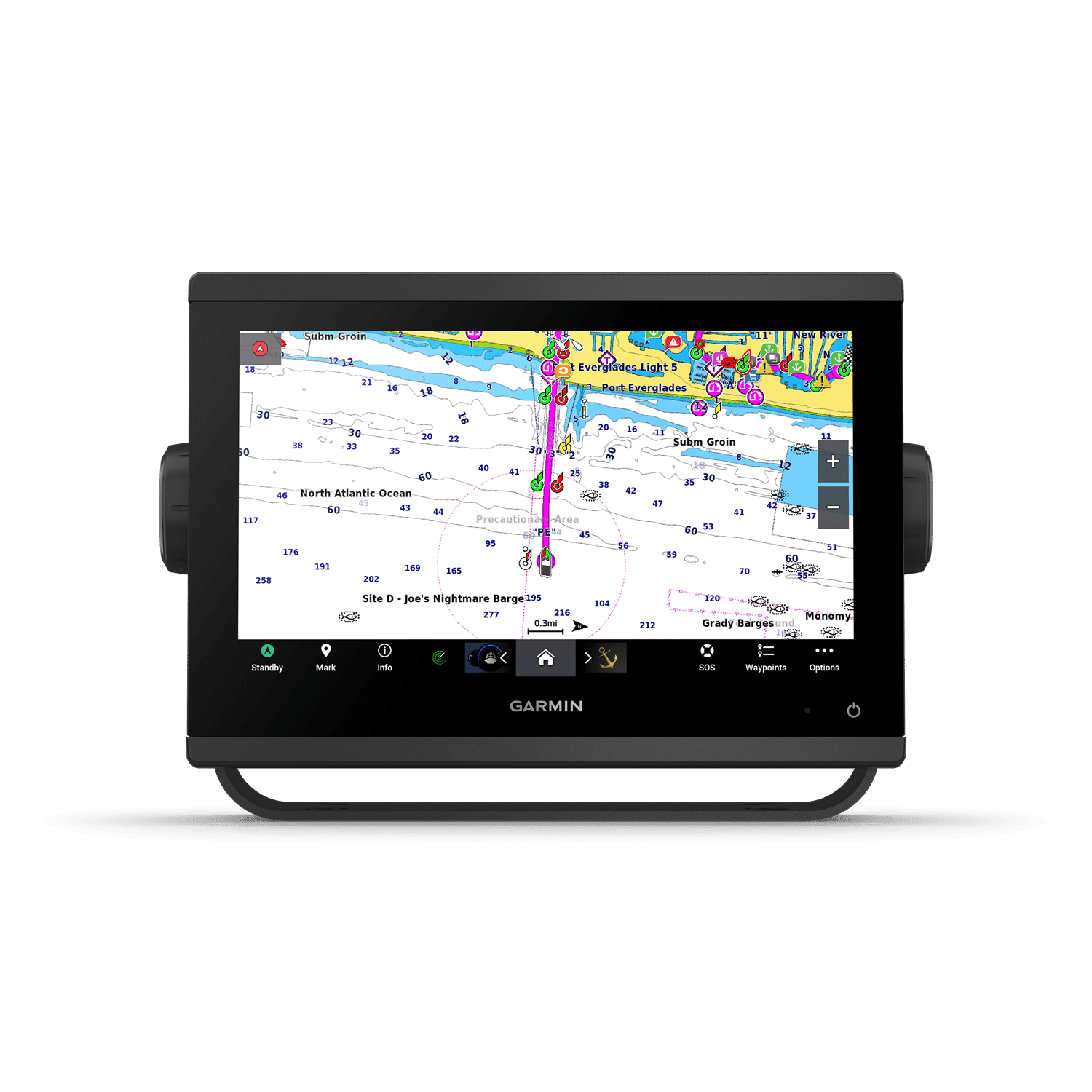

| TOUCHSCREEN | |
| INPUT | Touchscreen |
| DISPLAY SIZE | 7.8″ x 4.4″; 9.0″ diagonal (19.9 cm x 11.2 cm; 22.9 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 720 pixels |
| DISPLAY TYPE | WXGA |
| WEIGHT | 3.6 lbs (1.6 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Maps & Memory | |
| ACCEPTS DATA CARDS | 2 microSD cards (back of unit) |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| Sensors | |
| HAS BUILT-IN RECEIVER | Yes |
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | Yes |
| NMEA 0183 COMPATIBLE | Yes |
| GPS | Yes |
| GLONASS | Yes |
| GALILEO | Yes |
| SUPPORTS WAAS | Yes |
| Built-in Maps | |
| BUILT-IN AUTO GUIDANCE+ | Yes |
| GARMIN NAVIONICS+ INLAND & COASTAL | Yes |
| TIDE TABLES | Yes |
| Optional Map Support | |
| GARMIN NAVIONICS+™ | Yes |
| GARMIN NAVIONICS VISION+™ | Yes |
| TOPO | Yes |
| STANDARD MAPPING | Yes |
| GARMIN QUICKDRAW CONTOURS | Yes |
| RASTER CHART SUPPORT | Yes |
| Chartplotter Features | |
| SMART MODE COMPATIBLE | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| GSD BLACK BOX SONAR SUPPORT | Yes |
| GCV BLACK BOX SONAR SUPPORT | Yes |
| ACTIVECAPTAIN® COMPATIBLE | yes |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | Yes |
| WIRELESS REMOTE COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| SPOKEN AUDIO ALERTS | Yes |
| ONEHELM SUPPORT | Yes |
| Sonar Features & Specifications | |
| DISPLAYS SONAR | Yes |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | yes (with GCV™ black box, sold separately) |
| CLEARVÜ | Yes (with external black box, sold separately) |
| SIDEVÜ | Yes (with external black box, sold separately) |
| PANOPTIX™ SONAR | Yes |
| LIVESCOPE | Yes |

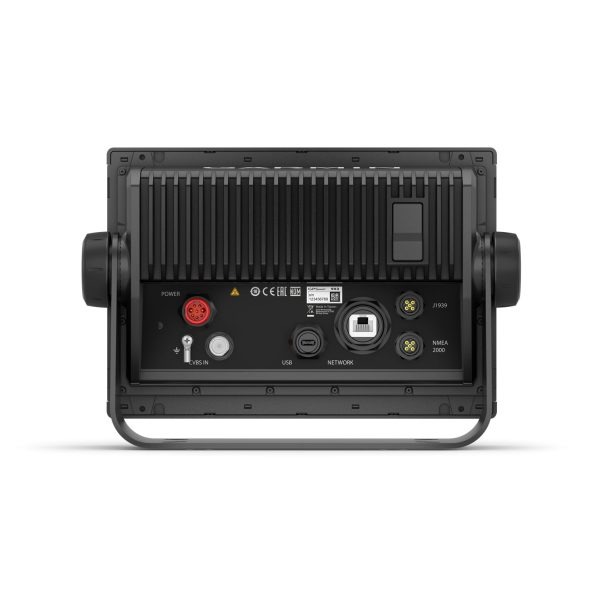

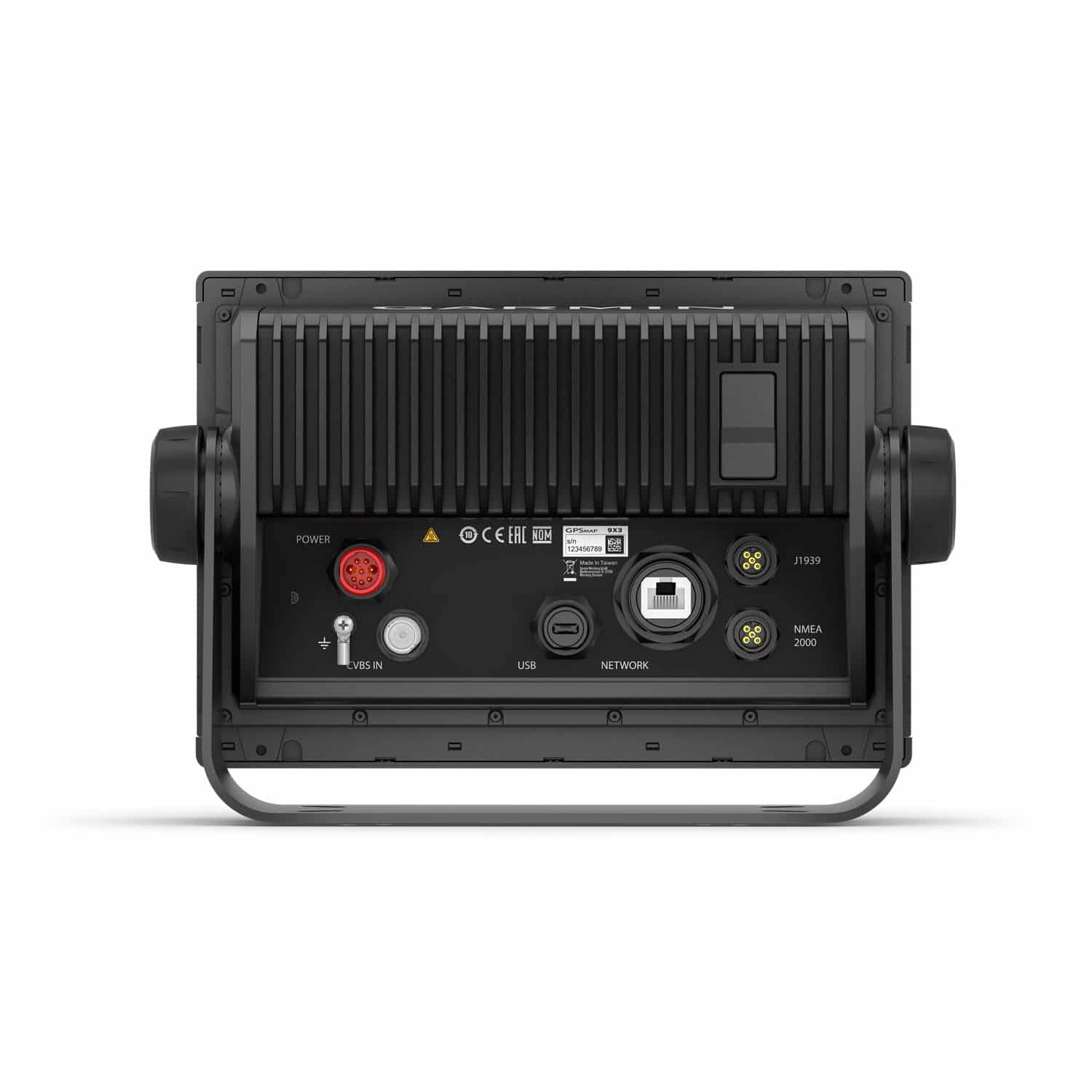

| Connections | |
| NMEA 2000 PORTS | 1 |
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| VIDEO INPUT PORTS | 1 (BNC composite) |
| J1939 PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 1 |
| USB PORTS | Yes |
| BNC EXTERNAL GPS ANTENNA PORT | Yes |
| BLUETOOTH® PAIRING | Yes |
| ANT+ (CONNECTIVITY) | Yes |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | Yes |
| Electrical Features | |
| POWER INPUT | 10 to 32 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 1.34 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 1.78 A |
| MAXIMUM POWER USAGE AT 10 VDC | 22.0W |
