Description
- Displays Automatic Identification System (AIS) on the chartplotter
- Standard Class D Digital Selective Calling (DSC) functionality (distress calling and direct calling with user programmed MMSI)
- In case of trouble, DSC may improve your chances of a rapid rescue
- 25 W of transmit power
- Frequency bands: all U.S., Canadian and international marine channels; 10 NOAA weather channels

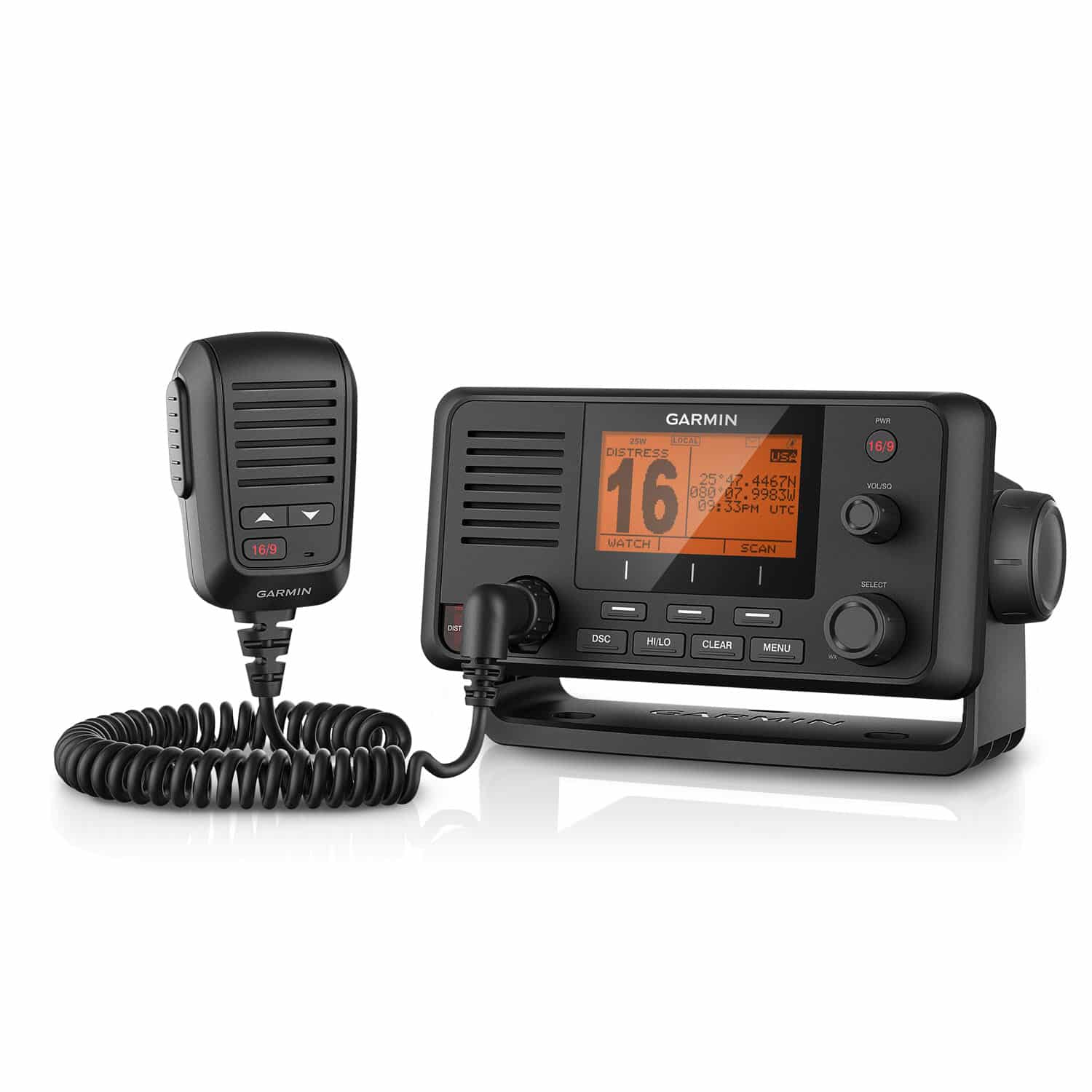

Communication and situational awareness are critical on the water. This fixed-mount VHF 210 AIS radio displays AIS on the chartplotter to enhance communication, situational awareness and collision avoidance between you and other mariners worldwide.
Increase Your Peace of Mind
Duringย an emergency situation, the 25 W transmit power of the VHF 210 AIS gives all fishermen, sailors and cruisers confidence at their fingertips.
Communicate Confidently on the Water
Easy to install and use, just plug and play via the NMEA 2000 network to compatible Garmin chartplotters and MFDs. Provides standard Class D DSC functionality (distress calling and direct calling with user programmed MMSI). Includes frequency bands for all U.S., Canadian and international marine channels and 10 NOAA weather channels. Also NMEA 0183 compatible and includes 2-way hailer system for onboard communication.
Communicate with Style
Because your helm is a source of pride, the VHF 210 AIS marine radio is designed to complement the appearance of GPSMAPยฎย 7×2/9×2, GPMAP 10×2/12×2, GPSMAP 7400/7600 and GPSMAP 8400/8600 chartplotters and MFDs.
Specifications
- Unit Dimensions, HxWxD: 3.9โ x 7.8โ x 5.8โ (9.8 x 19.7 x 14.9 cm)
- Weight: Radio without microphone 42.8 oz. (1.2 kg); Microphone 8.8 oz. (0.25 kg)
- Water rating: IPX7
- Temperature Range: Operating (from -15ยบC to 70ยบC; from 5ยบF to 158ยบF); Storage (from -20ยบC to 70ยบC; from -4ยบF to 158ยบF);
- Compass-safe Distance: 29.5โ (75 cm)
- NMEA 2000: Yes
- NMEA 0183: Yes
- AIS: Yes, when connected to NMEA 2000
- Digital Selective Calling: Class D
- Frequency Bands: All USA, Canadian, and international marine channels; 10 NOAA weather channels
- Operating Voltage: 10.8 – 15.6 Vdc
- Current Draw: Standby 350 mA; Receive 600 mA; Transmit from 2.0 A to 6.0 A (from 1 W to 25 W)
- Frequency Range: 156.050 MHz to 163.275 MHz (including WX channels)
- Hailer Output Power: 20 W at 4 ฮฉ
- Hailer horn impedance: 4 ฮฉ
- External speaker impedance: 4 ฮฉ
- Antenna connector: S0-239 (50 ฮฉ)
- Maximum antenna gain: 9 dBi
