Description

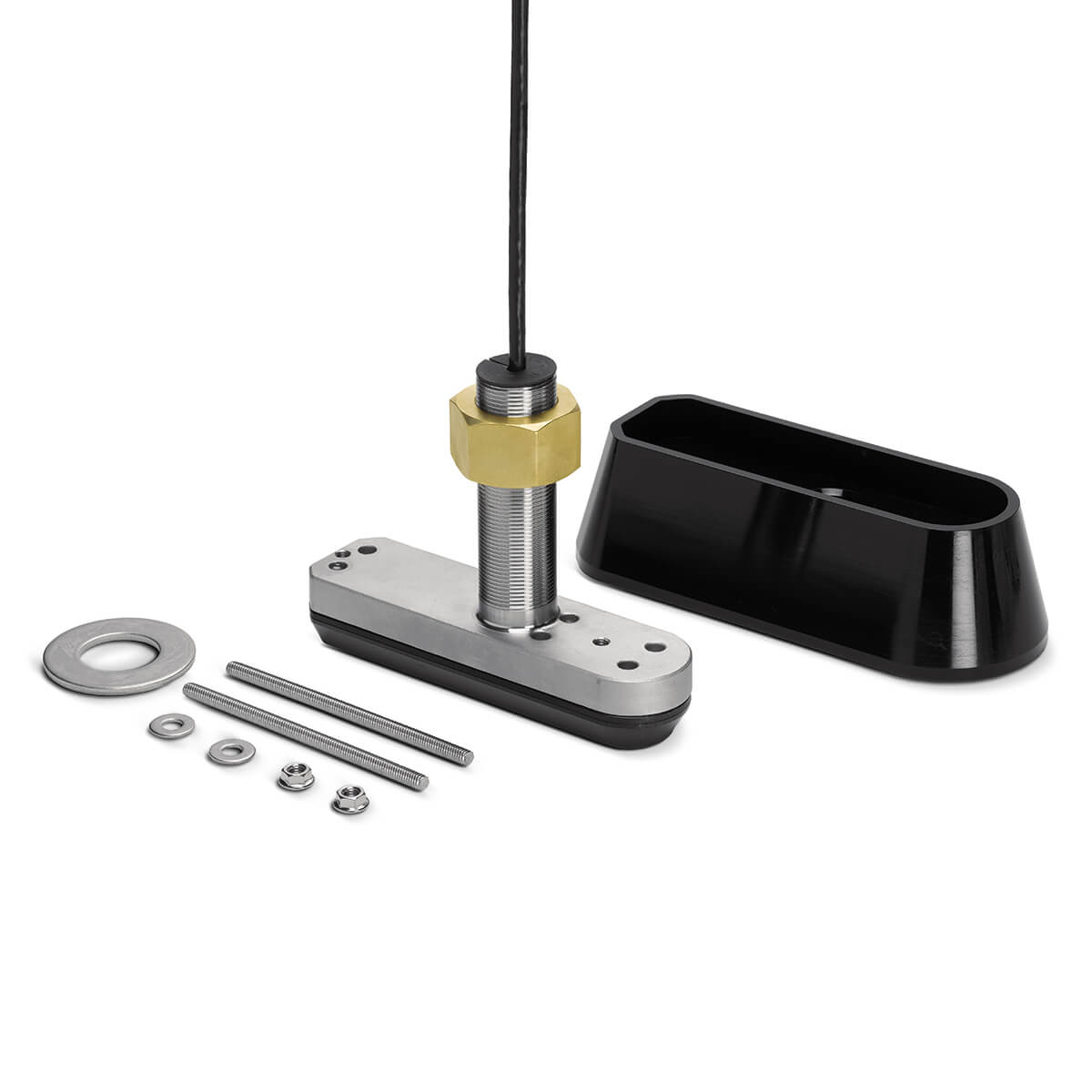

Stainless steel thru-hull, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar. includes built-in temperature sensor. Designed to bring our leading sonar technologies to larger vessels
Features:
- Compatible with: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
- Cable Length: 30 Feet
- This transducer provides Side Imaging (800kHz/455kHz), Down Imaging (MEGA DI+/800kHz/455kHz) and Dual Spectrum CHIRP 2D sonar with a CHIRP range of 150-220kHz
- MEGA Side Imaging Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (122m)
- MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 250ft (76m), MEGA DI+: 1075-1150 kHz – 200ft (61m)
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- Connects to HELIX 8-12 MSI+ G3N models using adapter cable MKR MI-1 Humminbird HELIX Adapter Cable (#1852088)
- Transducer dimensions:ย 8.4L x 2.3″W x 1.65″D (below hull); Shaft diameter:ย 1.5″, Shaft length:ย 5″Fairing block included
- 1-Year Limited Warranty
Specifications:
| Mount Type | Thru-Hull |
| Sonar Type | MEGA Imaging +, Dual Spectrum |
| Current Models | SOLIX 10, SOLIX 12, SOLIX 15 |
| Warranty | One-Year Warranty |
| UPC | 0082324054815 |
