Description

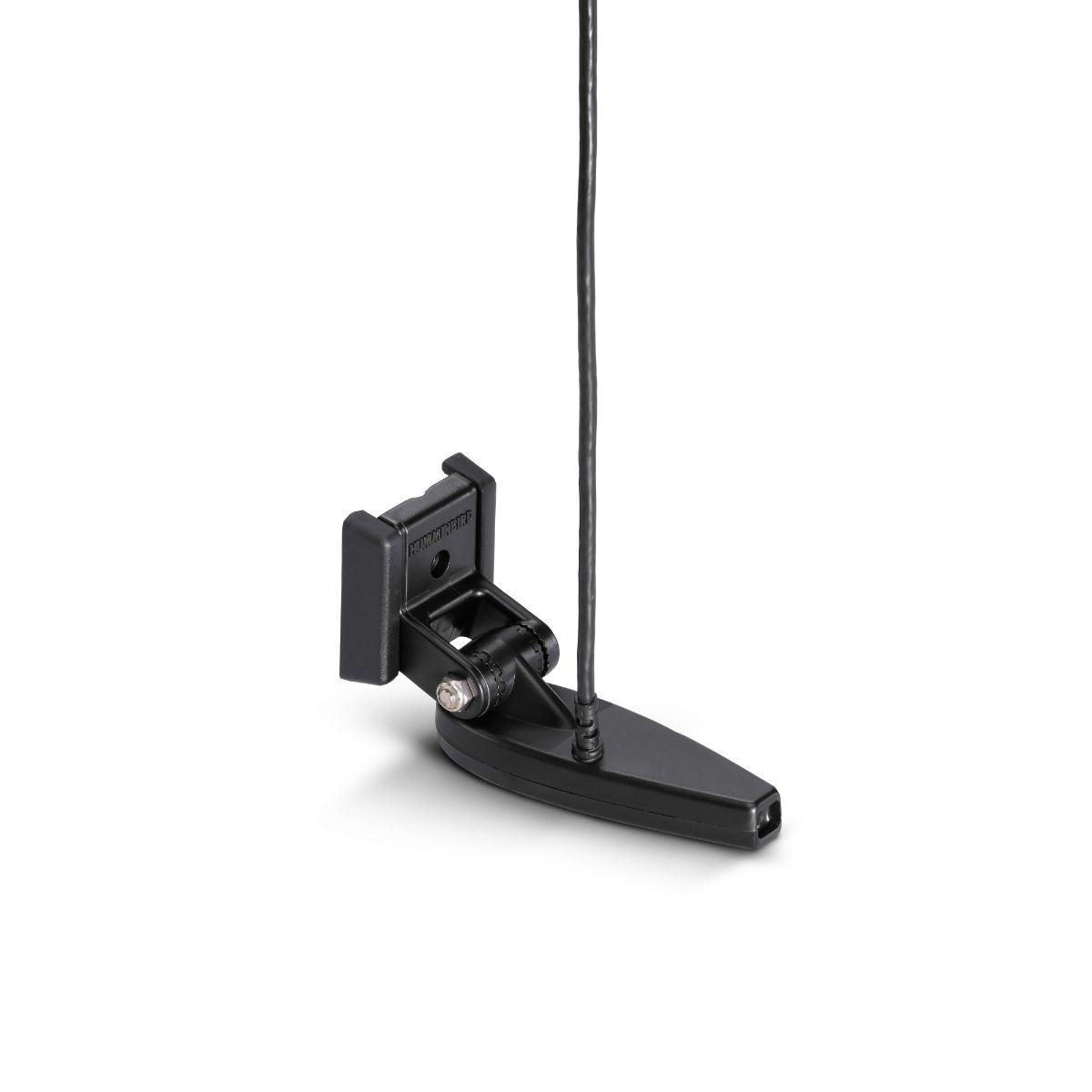

Transom Mount, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP 2D Sonar, 800kHz/455 kHz and 1.2 MHz with a CHIRP range of 150-220kHz. Includes built-in temperature sensor
Features:
- Compatible with: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 10 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G3N
- Cable Length:ย 20 Feet
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Side Imaging+ Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (122m)
- MEGA Down Imaging+ Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 125ft (38m), MEGA DI+: 1075-1150 kHz – 200ft (61m)
- 1-Year Limited Warranty
Specifications:
| Mount Type | Transom |
| Sonar Type | MEGA Imaging +, Dual Spectrum |
| Current Models | HELIX 8, HELIX 9, HELIX 10, HELIX 12 |
| Warranty | One-Year Warranty |
| UPC | 0082324053269 |
