Description

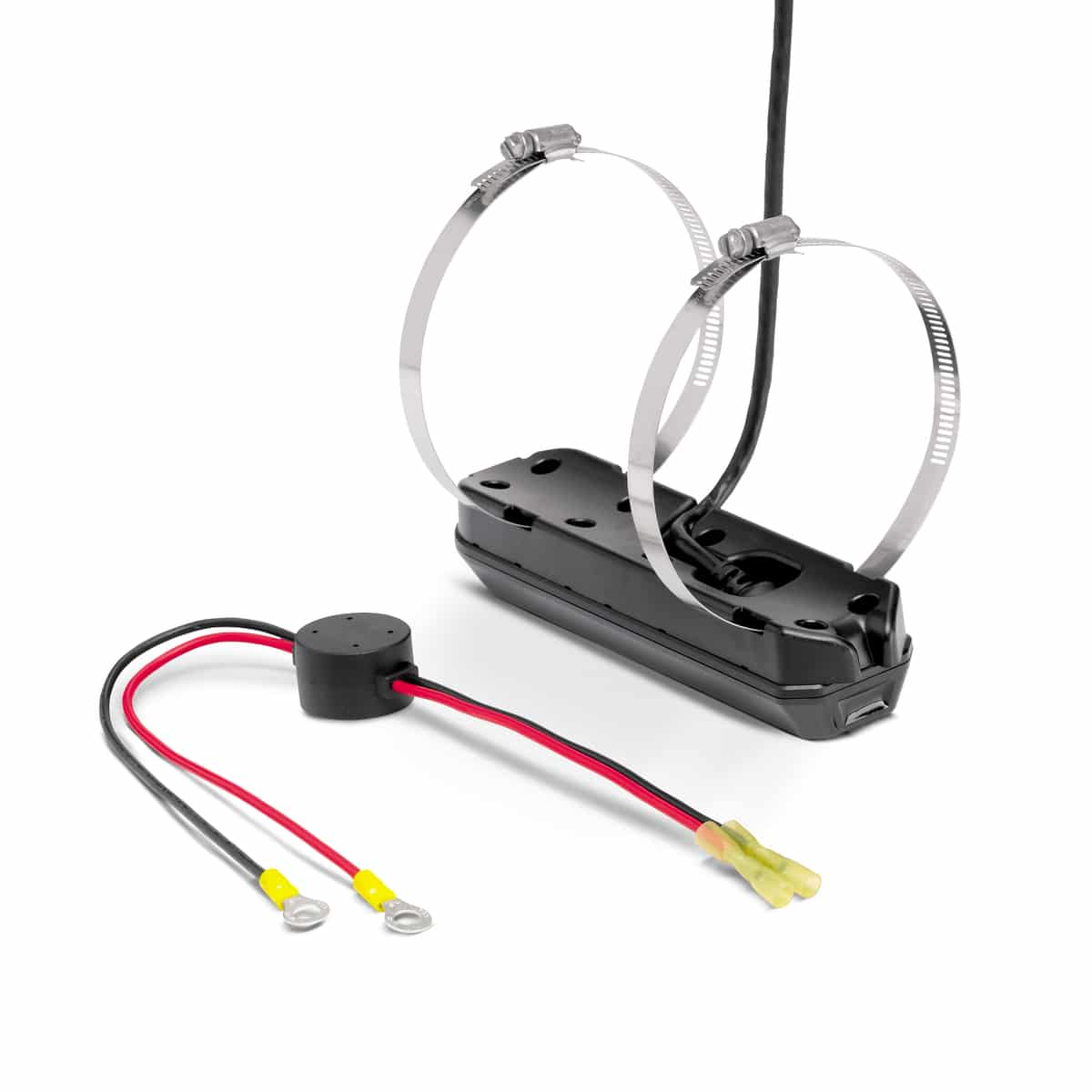

Trolling Motor Mount, MEGA Side Imaging+ 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature
Features:
- Compatible with: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 10 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G3N
- Cable Length: 15 Feet
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Side Imaging+ Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (m)
- MEGA Down Imaging+ Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 125ft (38m), MEGA DI+: 1075-1150 kHz – 200ft (61m)
- Note: This transducer will not fit Minn Kota trolling motors with less than 80 pounds of thrust as it measures 8.4″ long by 2.3″ wide and will not fit between the prop and the skeg.
- 1-Year Limited Warranty
Specifications:
| Mount Type | Trolling Motor |
| Sonar Type | MEGA Imaging +, Dual Spectrum |
| Current Models | HELIX 8, HELIX 9, HELIX 10, HELIX 12 |
| Warranty | One-Year Warranty |
| UPC | 0082324053245 |
