Description

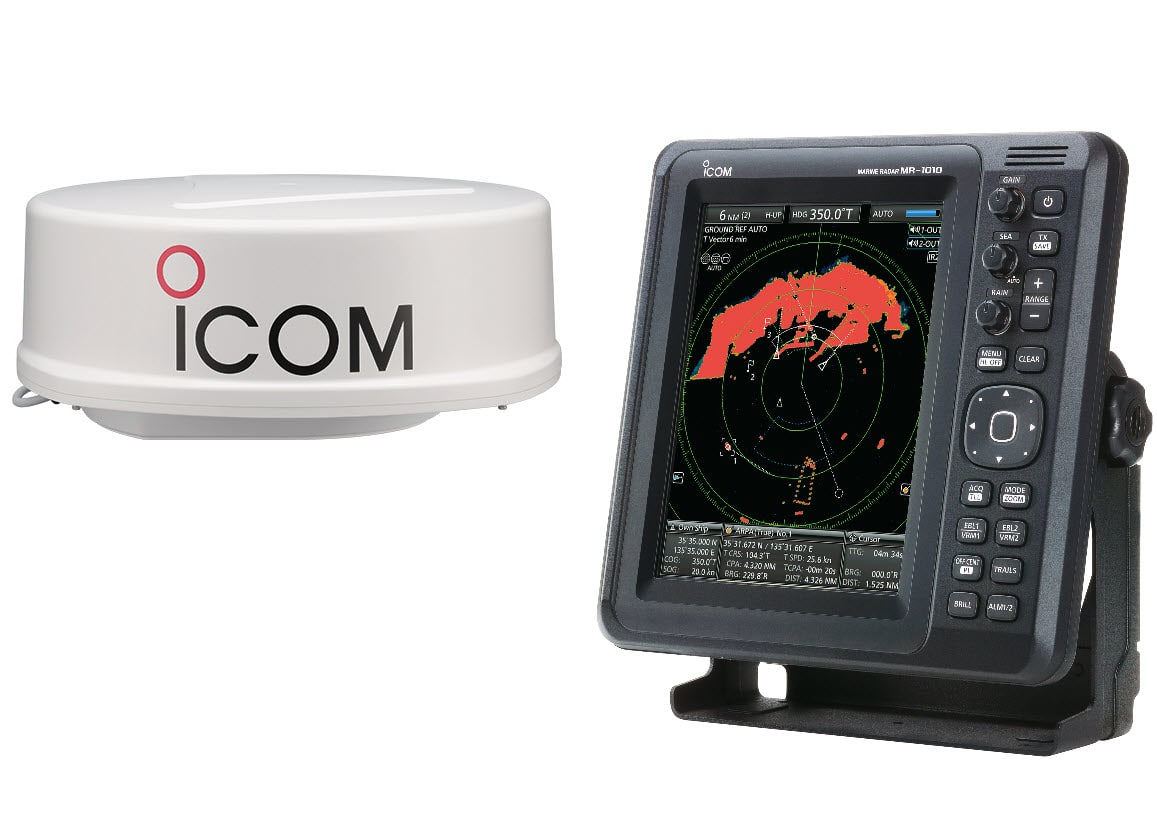

Icom Marine Radar 36 NM 4Kw
The simplified ARPA function helps to prevent a collision risk with other vessels or objects. Up to five targets can be automatically tracked on the radar echo, when a target enters within the set watch area, (or up to ten targets can be tracked when manually set). By selecting one of the targets, the target information such as position, course, speed, CPA, TCPA, bearing, and distance is shown on the lower side of the display. When the target enters within the CPA and TCPA limits, an alarm message is displayed with a beep alarm.
* External bearing, speed and position data required.
Maximum Range: |
36NM with 4kW output | |
Scanner Type: |
2’ Radome scanner | |
Display Type: |
10.4″ Color TFT LCD |
Safety Features
Connect the MR-1010RII to a DSC radio to use the DSC information function. When connected to a DSC radio and a DSC call is received, the received message is transferred to the MR-1010RII. Plot up to 20 DSC messages on the radar echo. If Man Overboard (MOB) position information is transmitted from a DSC handheld transceiver (i.e. M93D), the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation.
Connect the MR-1010RII to an external AIS device to use the AIS overlay function. When connected (i.e. M506 & M605), up to 100 AIS target icons are overlaid on the radar echo. By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing and distance are shown on the lower side of the display.
Large Color Display
The MR-1010RII gives approximately a 176° viewing angle. The color RFT LCD (480×640 dots) display offers bright vivid echos with 16 steps gradient intensity. Easily adjust the screen color (day, night and user settings) with the “BRILL” button. In addition, the auto hide information function enlarges radar echoes to size.
Configure various settings through the MR-1010RII’s visually intuitive operation. The language setting is selectable from English, Indonesian, Korean, Spanish, Thai and Vietnamese. The large eight-direction cursor key provides smooth operation even when wearing gloves.
Additional Features
- Simplified ARPA function helps prevent collision risk with other vessels or objects
- TLL (Target Latitude Longitude) function
- True trail function
- 10.2-42V wide DC input to prevent over voltage damage
- Two user programmable alarm zones
- Optional video output unit
