Description
Diesel Air Heater Planar 44D-HA-PU5 comes with the dial controller PU-5, basic installation kit and Operation Manual. The heater is equipped with self-adjusting system for operation at high altitudes up to 2500 m / 8200 ft.
Available in 12 and 24 Volt
Refer to Operation Manual for installation and operation procedures.
*For heating up to 35 ft. power boats / 40 ft. sail boats, commercial trucks, buses, vans, motorhomes.
KIT CONTENTS
| Product | Contains |
| Planar 44D-12 / -24 – Diesel Air Heater | 1 |
| Inline Metering Fuel Pump | 1 |
| Fuel Line, m | 5.5 |
| Fuel Pick-UP Stand Pipe | 1 |
| Plastic Fuel Tank 7L. | 1 |
| Stainless Steel Flexible Exhaust, ft. | 3 |
| Exhaust Clamp | 1 |
| Combustion Air Intake Hose, ft. | 2 |
| Remote Wired Controller | 1 |

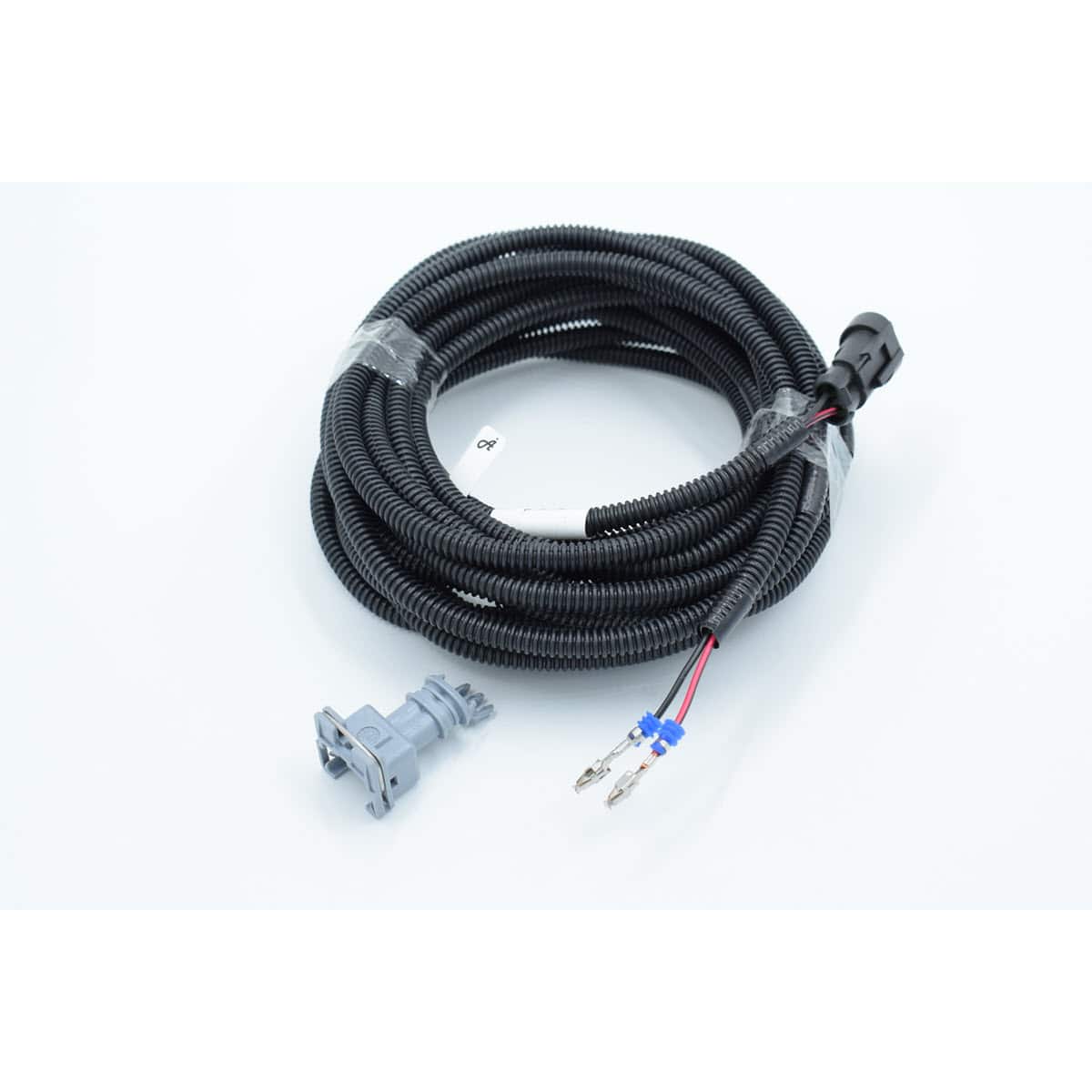

| Fuel Pump El. Cable, 6 m. | 1 |
| Power Cable with Fuses | 1 |
| Set of Fasteners & Brackets | 1 |
TECHNICAL DETAILS:
| 12V | 24V | |
| Heat Output; kW (BTU): | 1.0-4.0 (3,200-13,600) | 1.0-4.0 (3,200-13,600) |
| Fuel Consumption; l/h (gal/h): | 0.12-0.49 (0.03-0.13) | 0.12-0.49 (0.03-0.13) |
| Nominal Supply Voltage; V: | 12 | 24 |
| Power Consumption; W (A): | 10-62.4 (0.8-5.2) | 10-57.6 (0.8-4.8) |
| Airflow Rate; m3/h: | 70-120 | 70-120 |
| Weight; kg: | 8.0 | 8.0 |
| Â L x D x H; mm: | 398 x 157 x 160 | 398 x 157 x 160 |
| Â Operating Modes: | Â Temperature/Power | Temperature/Power |
| Weight | 11.5 kg |
| Dimensions | 49 × 36.5 × 31.5 cm |
| Voltage | 12V, 24V |
