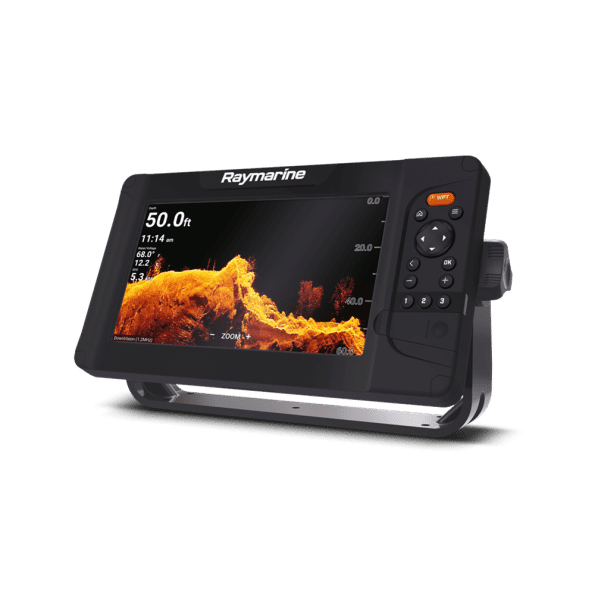

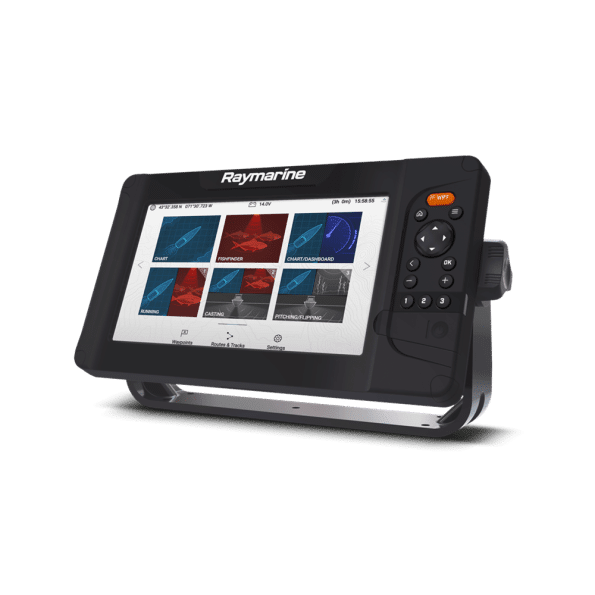

Raymarine Element 9 HV with HV-100 Transducer and Navionics+ USA and Canada Coastal Charts
- Bright And Rugged: Sunlight Viewable Displays With Integrated GPS/GNSS Receiver
- Superior HyperVision: 1.2 Megahertz CHIRP Sonar Technology Delivers Much Higher Resolution Imaging Compared To Conventional Side And Down Scanning Sonars
- RealVision 3D Built-In: Accurately Identify The Location Of Ledges, Channel Beds, And Other Contour Changes
- Fast Quad-Core Processor: For Instantaneous Chart Re-Draw And Sharp 3D Imaging
- All-In-One Transducer: Combines HyperVision, DownVision, SideVision, RealVision, And Conventional CHIRP Sonar Channels Into One Simple Installation
- Raymarine RealBathy Personal Sonar Mapping And Navionics SonarCharts Live Support
- Optimized For Fishing, The LightHouse Sport OS Is Fast And Easy-To-Learn
- An Oversized Waypoint Key For Marking Your Favorite Spots And Three User-Programmable Keys
- Switch To Standard 350 Kilohertz CHIRP Sonar For Longer Range, High-Resolution Imaging, And Ranges Up To 180 Meters
- Limited 2 Year Warranty
| Dimensions | |
| Trunnion Mount | Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in) |
| Surface Mount | Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in) |
| Weight | 1.3 Kg (2.86lbs) |
| Display | |
| Screen (Diagonal) | 9” |
| Resolution | WVGA 800 x 480 |
| Ratio | 5:3 |
|
Viewing Angle (T/ B/ L/ R) |
50° / 70° / 70° / 70° |
| Type | TN (Twisted Nematic) |
| Color Depth | 24-bit |
| Maximum Illumination | 1500 nits / 1500 cd/m2 |
| Power | |
| Operating Voltage Range | 8 V dc to 16 V dc (protected up to 32 V dc) |
| Power consumption (Approximate @ 12 V dc) | Power consumption (Approximate @ 12 V dc) |
| Nominal supply voltage | 12 V DC |
| Fuse Requirement | Inline fuse = 5 A, Thermal breaker = 3 A |
| LEN (NMEA 2000 Load Equivalency Number) | 1 (Based on 9 V dc nominal voltage) |
| Data Connections | |
| SeaTalkng / NMEA 2000 | 1 x DeviceNet female connector built into power cable |
| 2.4 GHz Wi-Fi | 1 x 802.11/b/g/n |
| Transducer | 1 x 15-pin HyperVision connector |
| Hypervision | |
| 350 kHz (Standard) range | RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft) |
| 1.2 MHz (Hyper) range | RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft) |
| Sonar channels | Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard |
| 200 kHz range | Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft) |
| Frequencies | 1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP |
| Power | 1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W |
| Storage | |
| External | 1 x MicroSDXC card slot |
| Environmental | |
| Operating temperature range | -25°C (-13°F) to +55°C (+131°F) |
| Storage temperature range | -30°C (-22°F) to +70°C (+158°F) |
| Humidity | up to 93% @ 40°C (+104°F) |
| Waterproof rating | IPx6, IPx7 |
| GPS Receiver | Position Accuracy |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Channels | Multiple – ability to simultaneously track up to 28 satellites |
| Antenna | Internal – Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, GLONASS, Beidou |
| SBAS compatibility | EGNOS, GAGAN, MSAS, QZSS, WAAS |
| Signal Acquisition | Automatic |
| Almanac Update | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Cold Start | 2 Minutes |
